Genesis Coupe 3.8 Track, Automatic Trans
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System - 3.8L
›
Injector Drive Box (IDB)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

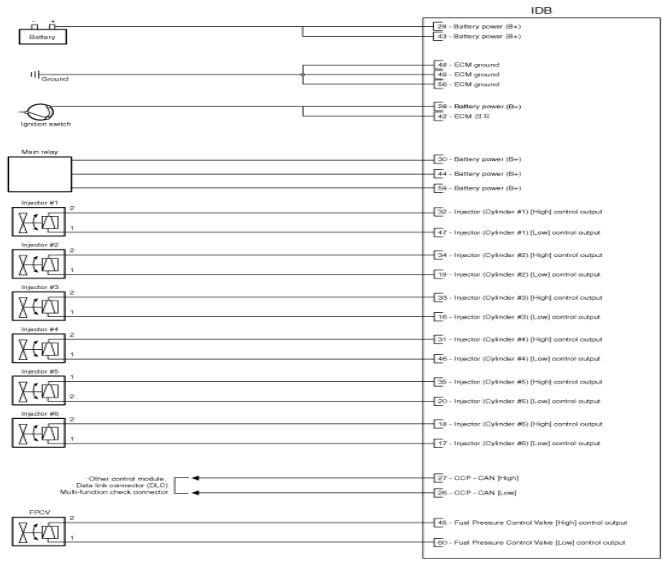

Fig 1: Injector Drive Box (IDB) Circuit Diagram (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

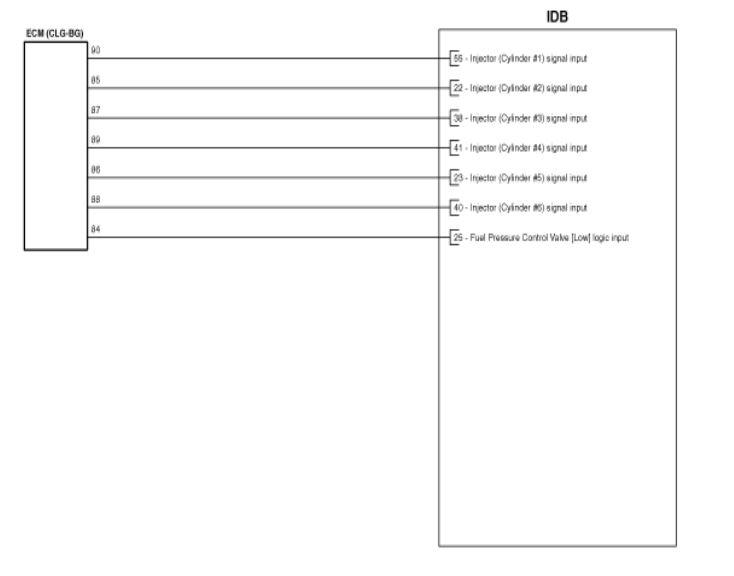

Fig 2: Injector Drive Box (IDB) Circuit Diagram (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
