Hyundai
›
2013
›
Genesis Coupe 3.8 Track, Automatic Trans
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System - 3.8L
›
Rail Pressure Sensor (RPS)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

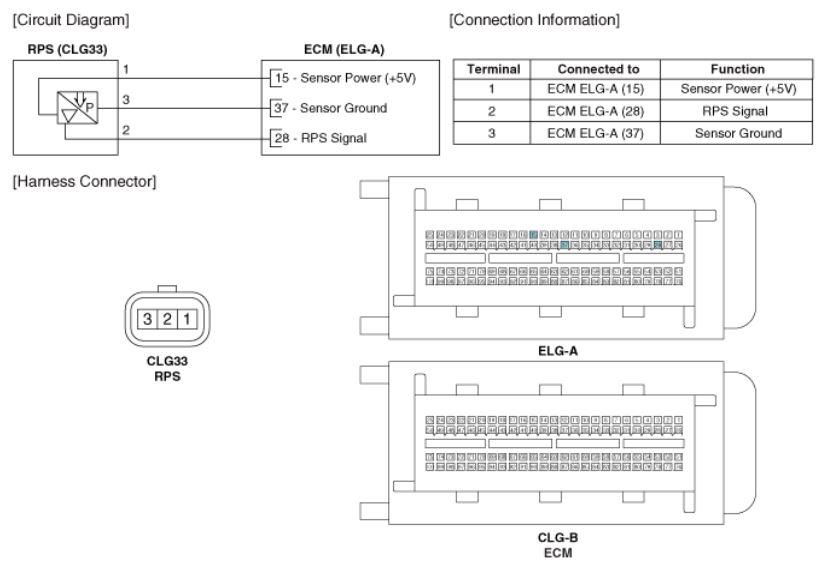

Fig 1: Rail Pressure Sensor (RPS) Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
