Smart Key Unit

Disconnect the negative (-) battery terminal.
Remove the driver crash pad lower panel.
(Refer to "CRASH PAD LOWER PANEL ")
Remove the smart key unit (B) after loosening the mounting bolts (2EA) and disconnecting the connector (A).

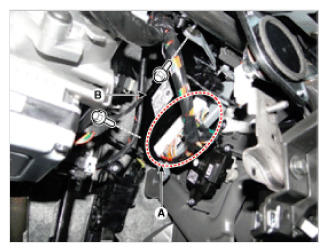

Fig 1: Identifying Smart Key Unit And Connector
Courtesy of HYUNDAI MOTOR AMERICA
