Repair Procedures: Inspection

Turn ignition switch OFF and disconnect the negative (-) battery cable.
Remove the crash pad lower panel.
(Refer to "CRASH PAD LOWER PANEL ")
Remove the crash pad side switch assembly (A) after loosening the screws.

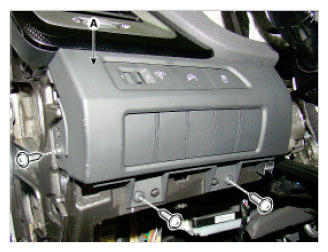

Fig 1: Identifying Crash Pad Side Switch Assembly
Courtesy of HYUNDAI MOTOR AMERICA
Check the continuity between the switch terminals as the DBC switch is engaged.

Fig 2: Crash Pad Side Switch Assembly Continuity Reference Chart
Courtesy of HYUNDAI MOTOR AMERICA
