Components and Components Location: Component

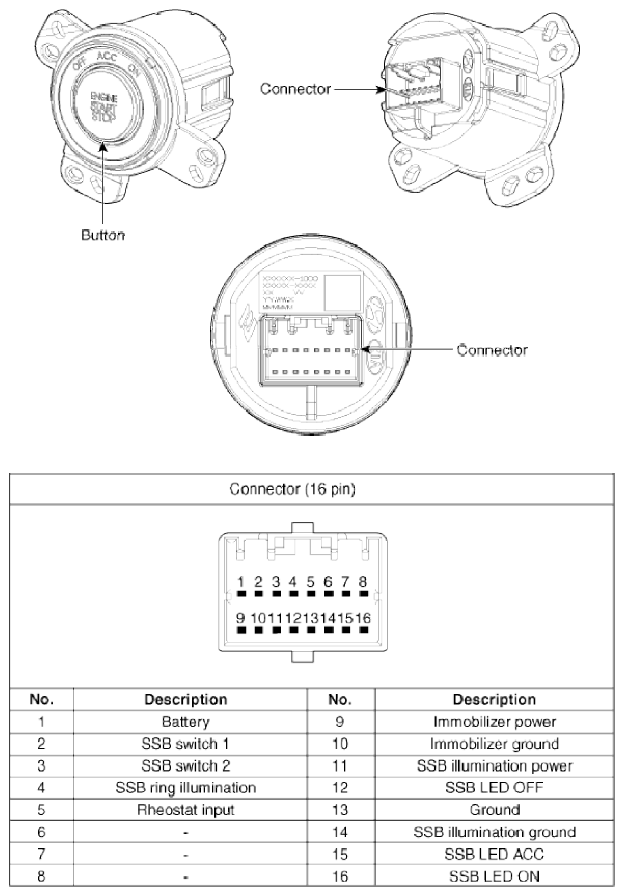

Fig 1: Start Stop Button Connector Terminal Identification
G09269062Courtesy of HYUNDAI MOTOR AMERICA
