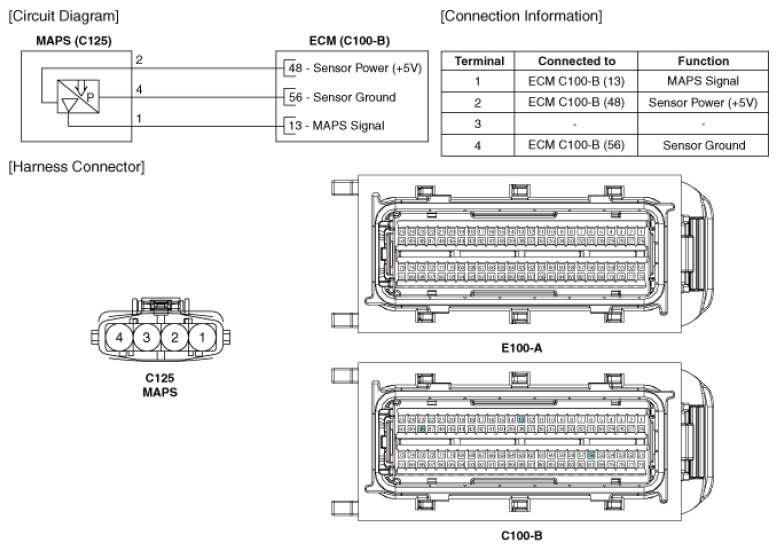

Home › Hyundai › 2013 › Santa Fe GLS, AWD › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System › Manifold Absolute Pressure Sensor (MAPS) › Schematic Diagrams › Circuit Diagram
