Monitor GDS Data

  1. Connect GDS to Data Link Connector (DLC).
  2. IG "ON".
  3. Select "Diagnostic Trouble Codes (DTC)"  button, Press "DTC Status" to check DTC's information from the DTCs menu.
  4. Read "DTC Status" parameter.

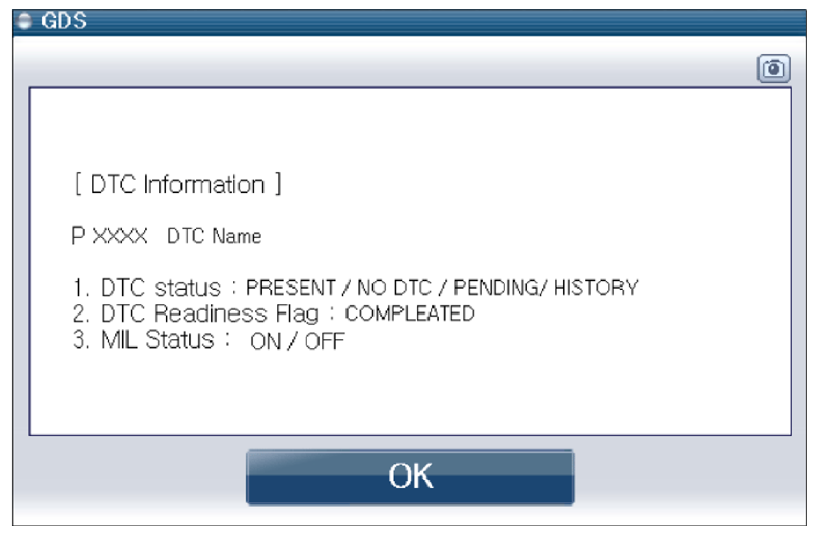

    Fig 1: Display - DTC Status Parameter Current Data
    G09273408Courtesy of HYUNDAI MOTOR AMERICA
  5. Record all DTC's, DTC status and freeze frame data. Does DTC Status indicate "Present"?

    YES

    • Do all repairs associated with those DTCs before proceeding with this procedure.

    NO
