Engine Control System Diagnosis (3 Of 3)
›
DTC P0620: Alternator Control Circuit
›
Specification
›
Signal Waveform & Data
Signal Waveform & Data

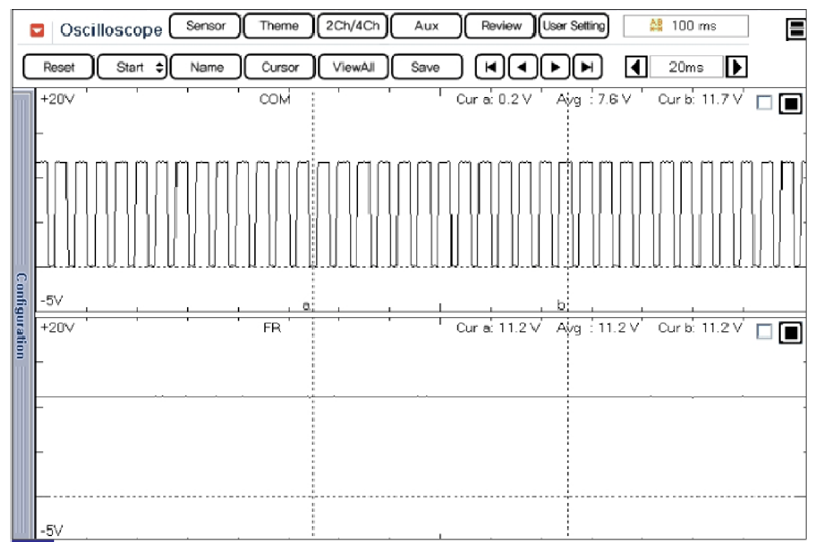

Fig 1: Display - Normal Waveforms Of COM, FR Terminal Of Alternator At Idle
Courtesy of HYUNDAI MOTOR AMERICA

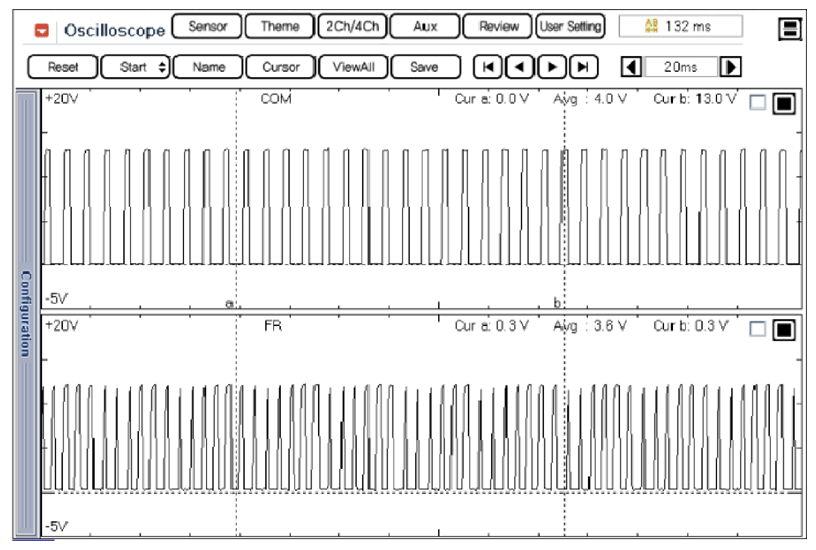

Fig 2: Display - Normal Waveforms Of COM, FR Terminal Of Alternator (With Connector Disconnected Condition At IG ON)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
