Components and Components Location: Components

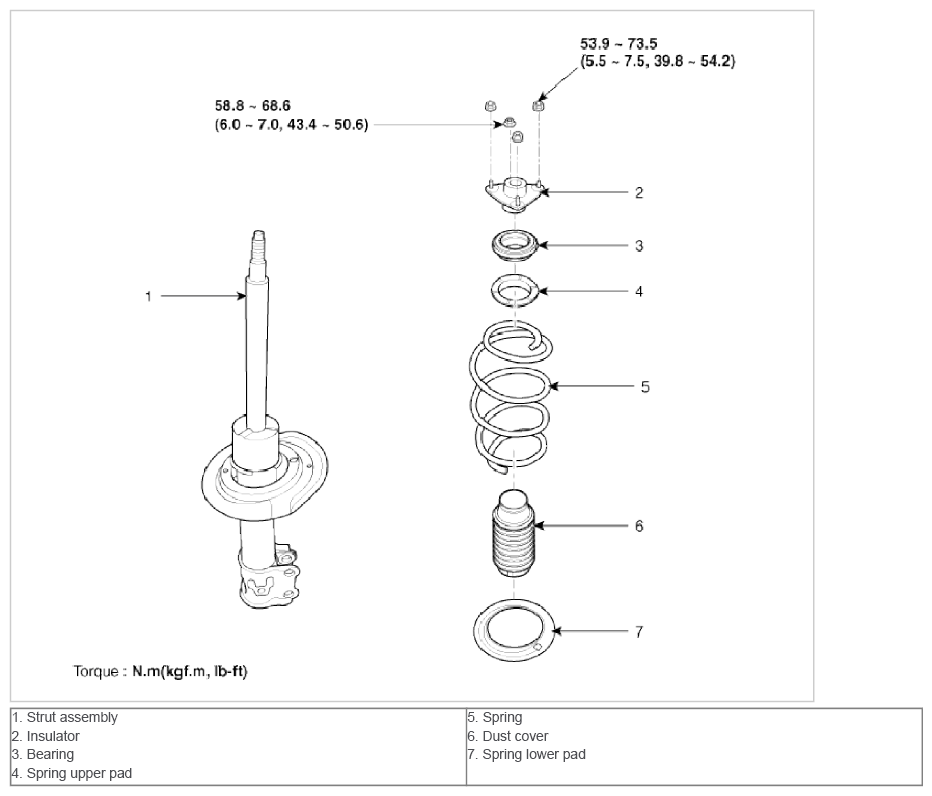

Fig 1: Front Strut Assembly Components With Torque Specifications
G09267902Courtesy of HYUNDAI MOTOR AMERICA
