Repair Procedures: Removal

Remove the air duct.
Refer to AIR CLEANER .
Remove the battery and the battery tray.
Refer to BATTERY .
Remove the under cover (A).
Tightening torque:

7.8 ~ 11.8 N.m (0.8 ~ 1.2 kgf.m, 5.8 ~ 8.7 lb-ft)

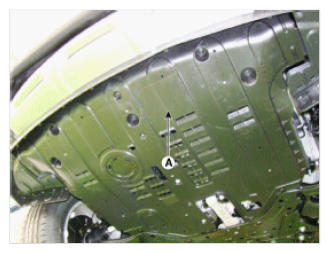

Fig 1: Identifying Under Cover
Courtesy of HYUNDAI MOTOR AMERICA
Drain the coolant.
Refer to COOLANT .
Remove the drain plug (A) and reinstall the drain plug after draining ATF totally.
Tightening torque:

38.2 ~ 48.1 N.m (3.9 ~ 4.9 kgf.m, 28.2 ~ 35.4 lb-ft)

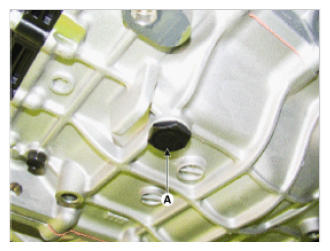

Fig 2: Identifying Drain Plug
Courtesy of HYUNDAI MOTOR AMERICA

CAUTION: Replace the gasket before reinstalling the drain plug.
Remove the wiring bracket installation bolt (A).

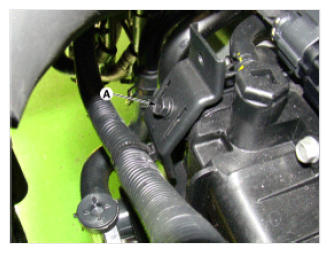

Fig 3: Identifying Wiring Bracket Installation Bolt
Courtesy of HYUNDAI MOTOR AMERICA
Remove the ATF Injection hole (eyebolt) (A).
Tightening torque:

2.9 ~ 4.9 N.m (0.3 ~ 0.5 kgf.m, 2.2 ~ 3.6 lb-ft)

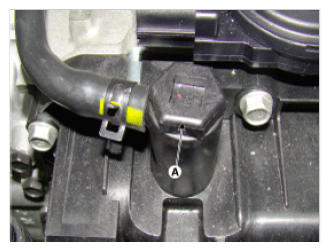

Fig 4: Identifying ATF Injection Hole (Eye Bolt)
Courtesy of HYUNDAI MOTOR AMERICA

CAUTION: Replace the O-Ring (A) before reinstalling the eyebolt.

Fig 5: Identifying Eyebolt O-Ring
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the coolant hose (B) after removing the coolant hose clamp (A).

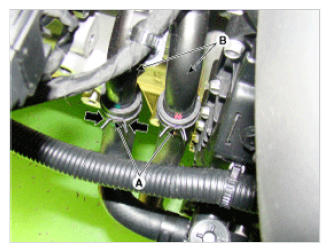

Fig 6: Identifying Coolant Hose And Clamp
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the hose (B) after removing the automatic transaxle fluid cooler hose clamp (A).

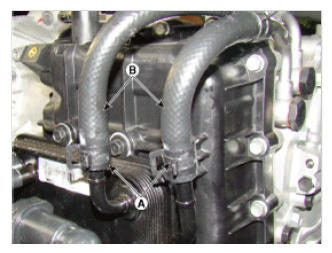

Fig 7: Identifying Automatic Transaxle Fluid Cooler Hose Clamp And Hose
Courtesy of HYUNDAI MOTOR AMERICA

CAUTION: When hose & pipe assembly
Align marking of pipe (B), marking of hose (A), and matching color each other.

Fig 8: Identifying Pipe And Hose Matching Mark
Courtesy of HYUNDAI MOTOR AMERICA
Remove the valve body cover (A).
Tightening torque:

(A) 13.7 ~ 15.7 N.m (1.4 ~ 1.6 kgf.m, 10.1 ~ 11.6 lb-ft)

Fig 9: Identifying Valve Body Cover
Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:
- Replace the gasket (A) before reinstalling the valve body cover.
Fig 10: Identifying Valve Body Cover Gasket
Courtesy of HYUNDAI MOTOR AMERICA
Remove the bolts (C) after disconnecting the solenoid valve connector (B) and the oil temperature sensor connector (A).
Tightening torque:

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

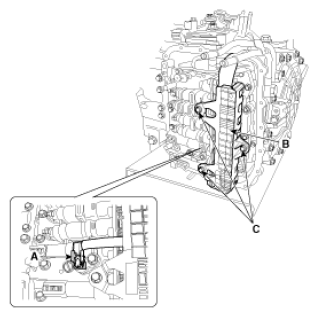

Fig 11: Identifying Solenoid Valve Connector, Oil Temperature Sensor Connector And Mounting Bolts
Courtesy of HYUNDAI MOTOR AMERICA
Remove the solenoid valve support bracket (A).
Tightening torque:

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

Fig 12: Identifying Solenoid Valve Support Bracket
Courtesy of HYUNDAI MOTOR AMERICA
Remove the solenoid valve (A).

Fig 13: Identifying Solenoid Valve
Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:
- When installing, apply the ATF oil or white Vaseline to the O-ring (A) not to be damaged.
Fig 14: Identifying Solenoid Valve O-Ring
Courtesy of HYUNDAI MOTOR AMERICA
