Hyundai
›
2013
›
Santa Fe Limited, AWD
›
Repair and Diagnosis
›
Body & Frame
›
Windows
›
Power Windows
›
Power Window Switch
›
Schematic Diagrams
›
Circuit Diagram
›
Driver Power Window Switch
Driver Power Window Switch

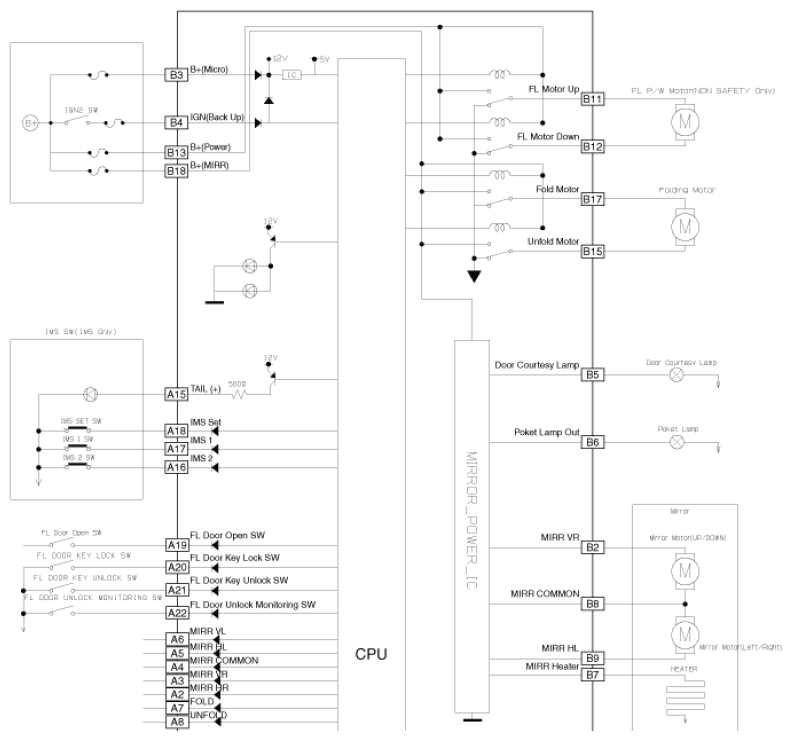

Fig 1: Driver Power Window Switch - Circuit Diagram (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

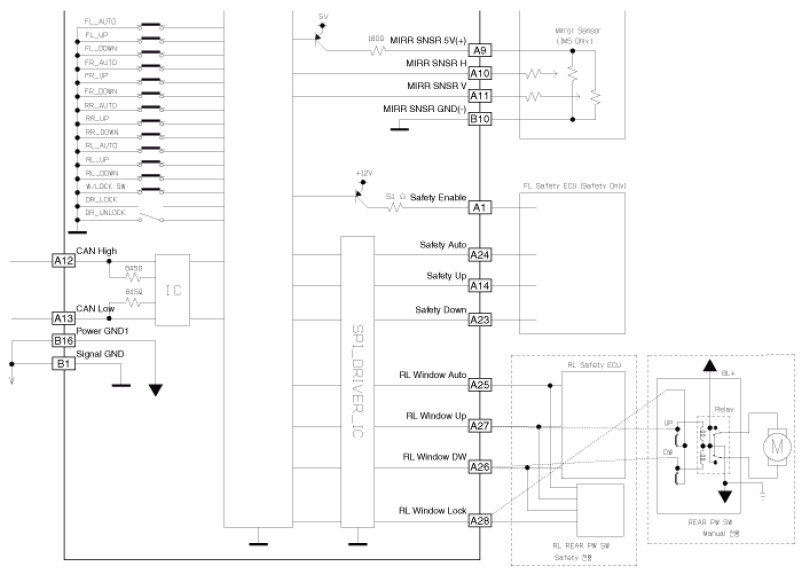

Fig 2: Driver Power Window Switch - Circuit Diagram (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
