Components and Components Location: Components

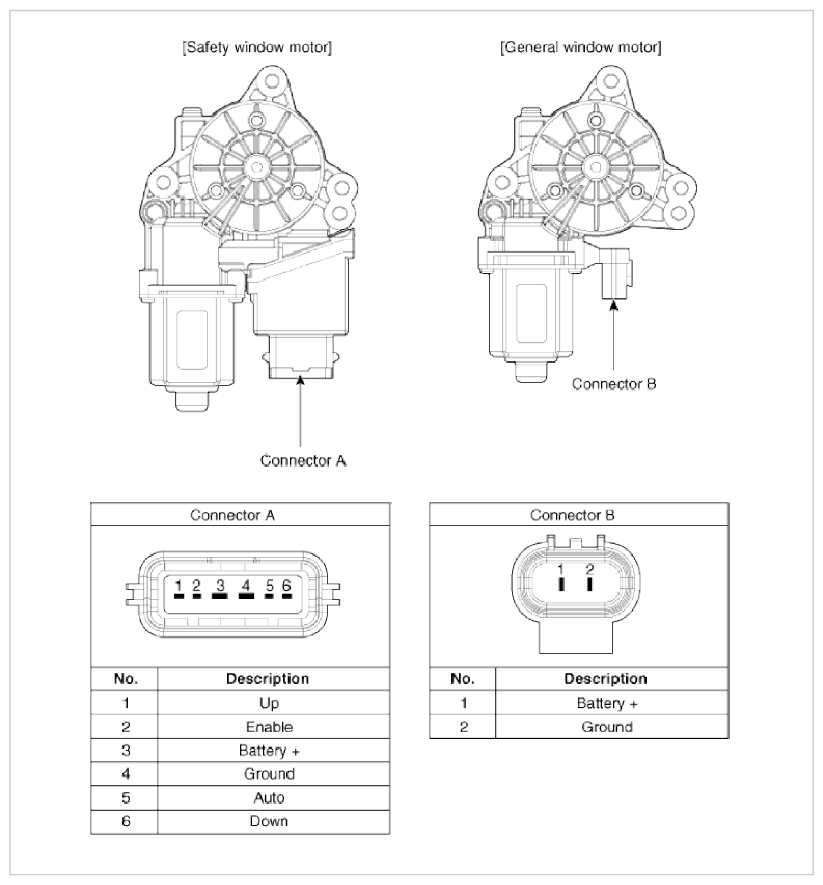

Fig 1: Identifying Power Window Motor Connector Terminals
G09366351Courtesy of HYUNDAI MOTOR AMERICA
