Repair procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the front bumper.

    Refer to FRONT BUMPER .

  3. Disconnect the connector, and then remove the ambient temperature sensor (A).

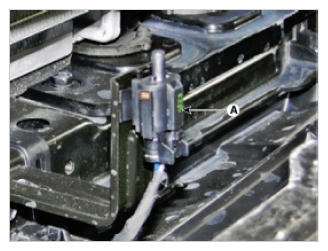

    Fig 1: Identifying Ambient Temperature Sensor
    G09364990Courtesy of HYUNDAI MOTOR AMERICA
