Manifold Absolute Pressure Sensor (MAPS): Specification

Pressure [kPa (kgf/cm2 , psi)]	Output Voltage (V)
32.5 (0.33, 4.71)	0.5
284.0 (2.90, 41.20)	4.5

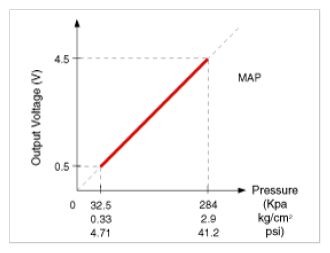

Fig 1: Manifold Absolute Pressure Sensor Output Voltage Versus Pressure Graph

Courtesy of HYUNDAI MOTOR AMERICA
