Electronic Stability Control (ESC) System
›
Front Wheel Speed Sensor
›
Components and Components Location
›
Components
Components and Components Location: Components

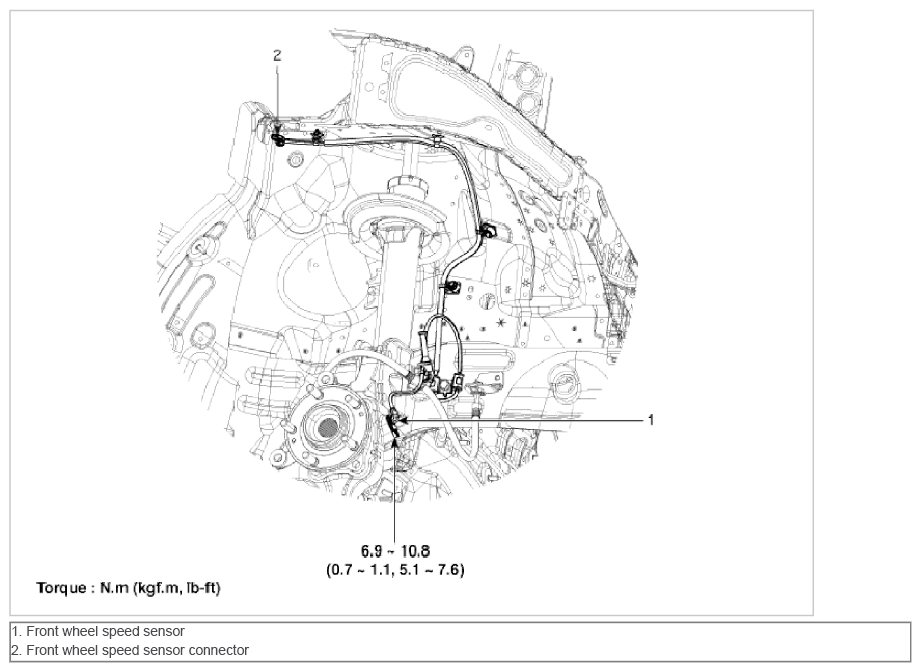

Fig 1: Front Wheel Speed Sensor Connector With Torque Specification
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
