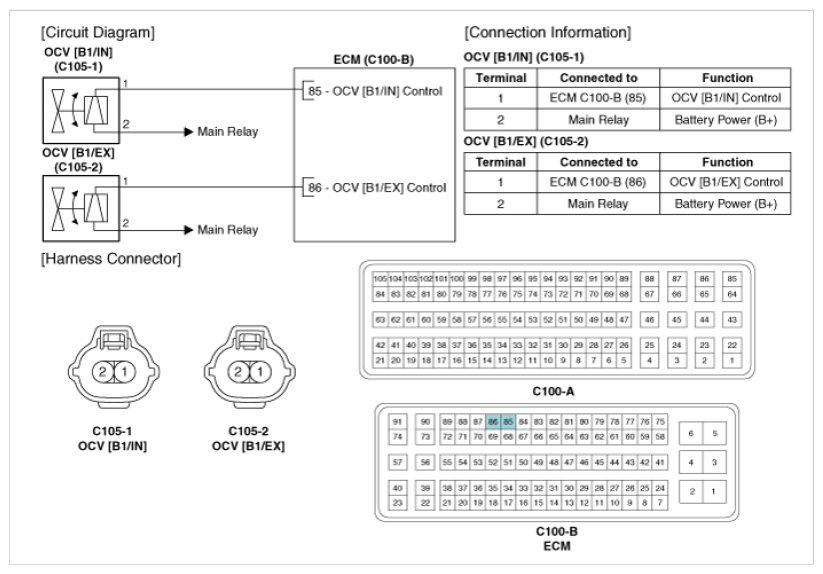

Home › Hyundai › 2013 › Santa Fe Sport Base, AWD › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 2.4L › CVVT Oil Control Valve (OCV) › Schematic Diagrams › Circuit Diagram
