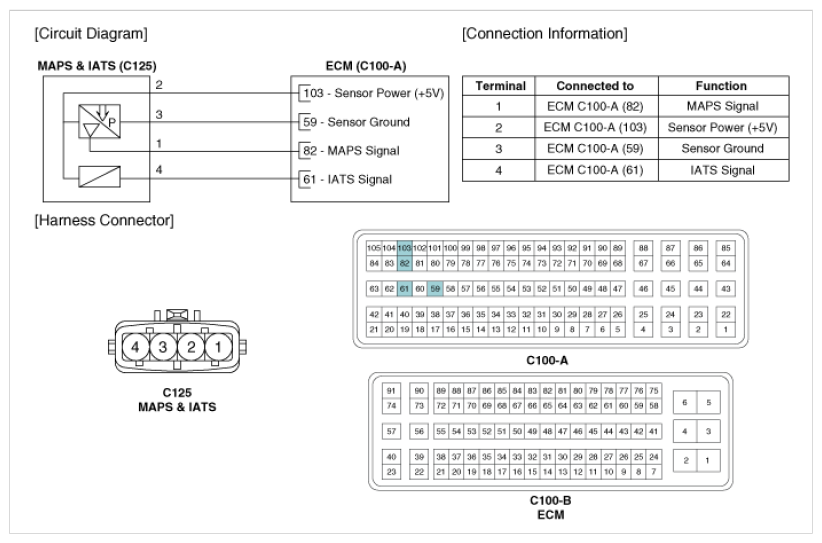

Home › Hyundai › 2013 › Santa Fe Sport Base, AWD › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 2.4L › Intake Air Temperature Sensor (IATS) › Schematic Diagrams › Circuit Diagram
