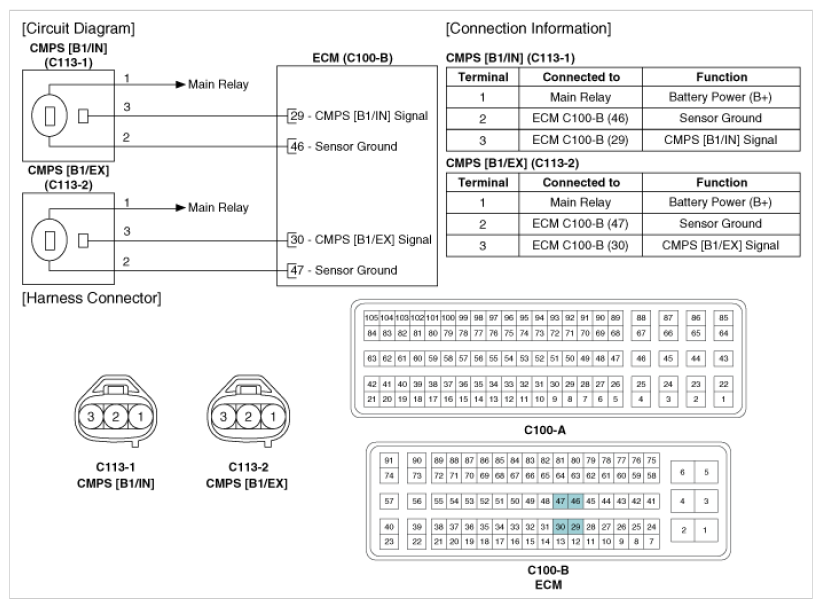

Home › Hyundai › 2013 › Santa Fe Sport Base, FWD › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 2.4L › Camshaft Position Sensor (CMPS) › Schematic Diagrams › Circuit Diagram
