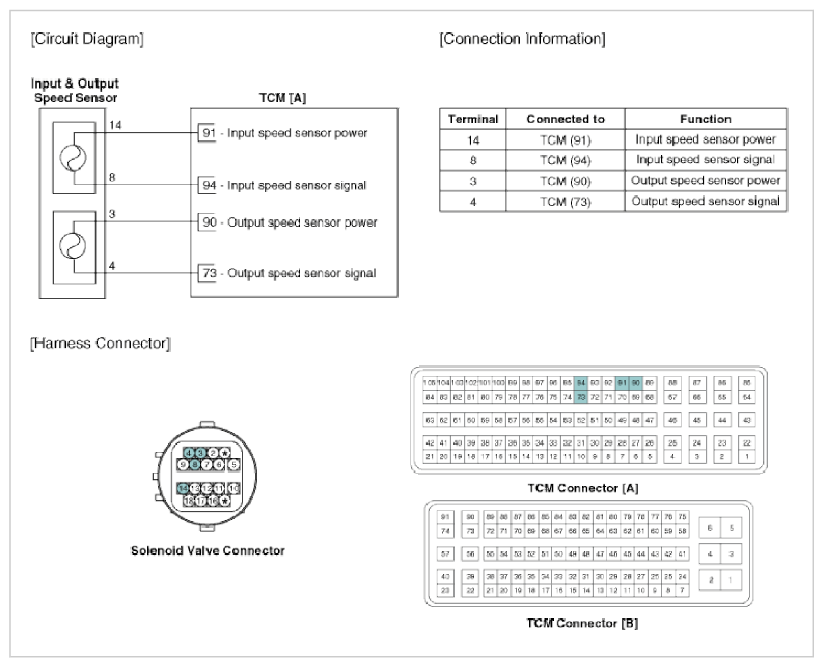

Home › Hyundai › 2013 › Santa Fe Sport Base, FWD › Repair and Diagnosis › Transmission › Transmission Control Systems › Automatic Transaxle Control System - 2.4L › Input Speed Sensor › Schematic Diagrams › Circuit Diagram
