Components and Components Location: Components

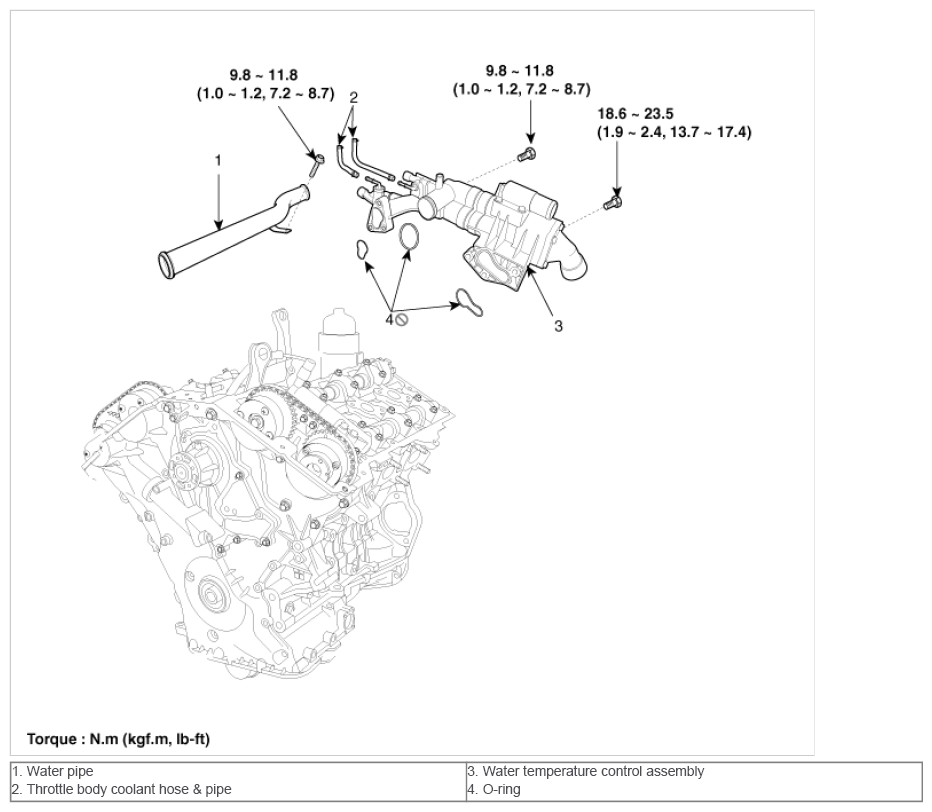

Fig 1: Water Temperature Control Assembly Replacement Components With Torque Specifications
G09267293Courtesy of HYUNDAI MOTOR AMERICA
