Neutralization Status Check: Notes

Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
After IG ON, select the "Neutralization mode".

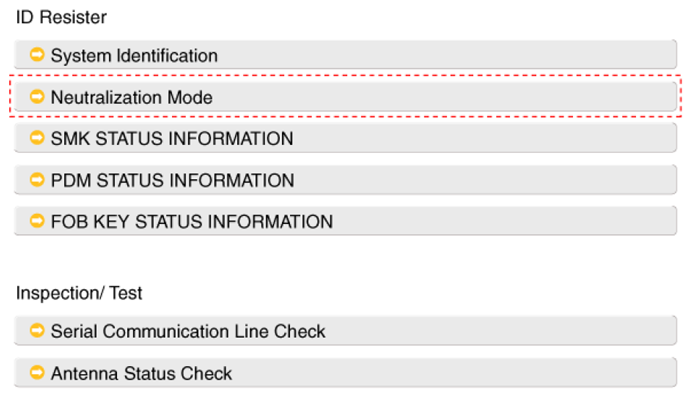

Fig 1: GDS Screen Display - Neutralization Mode Button

Courtesy of HYUNDAI MOTOR CO.

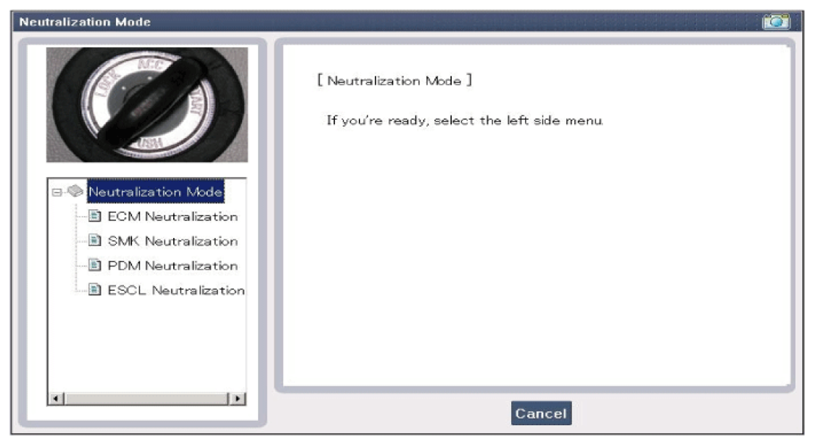

Fig 2: GDS Screen Display - Neutralization Mode

Courtesy of HYUNDAI MOTOR CO.

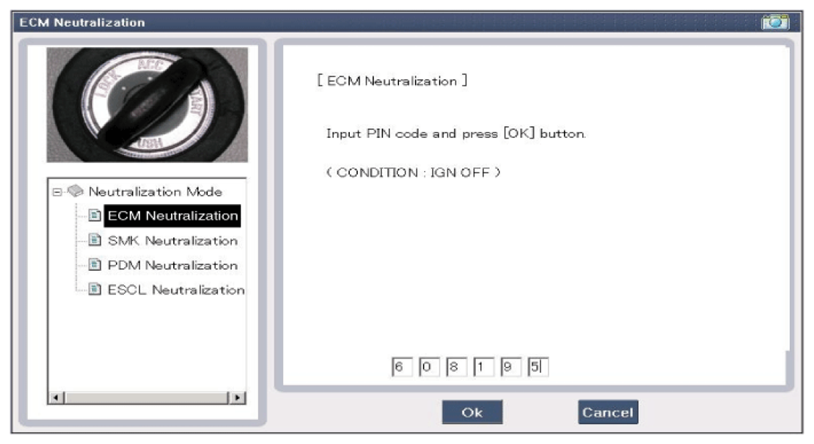

Fig 3: GDS Screen Display - ECM Neutralization

Courtesy of HYUNDAI MOTOR CO.

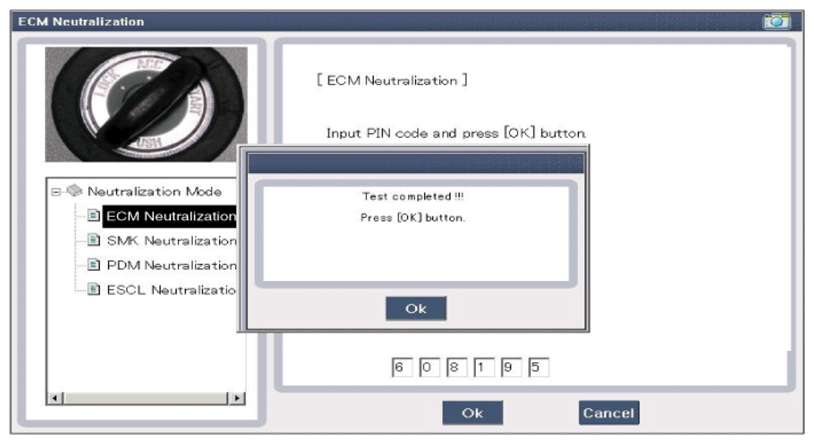

Fig 4: GDS Screen Display - ECM Neutralization Test Completed

Courtesy of HYUNDAI MOTOR CO.

Fig 5: GDS Screen Display - SMK Neutralization

Courtesy of HYUNDAI MOTOR CO.

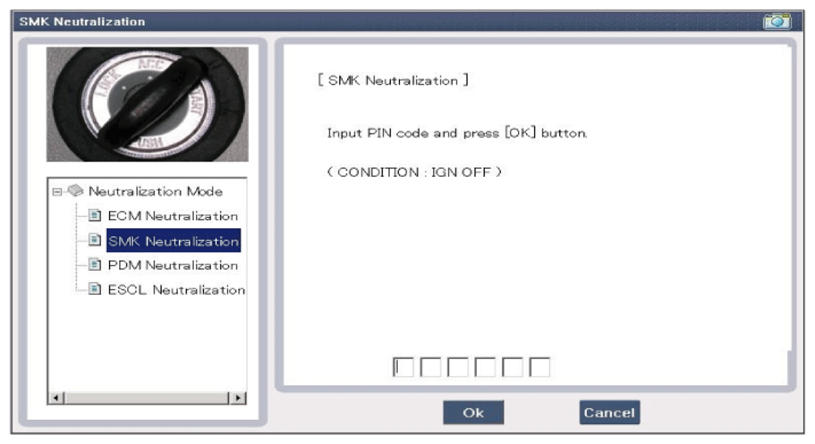

Fig 6: GDS Screen Display - SMK Neutralization In Process

Courtesy of HYUNDAI MOTOR CO.

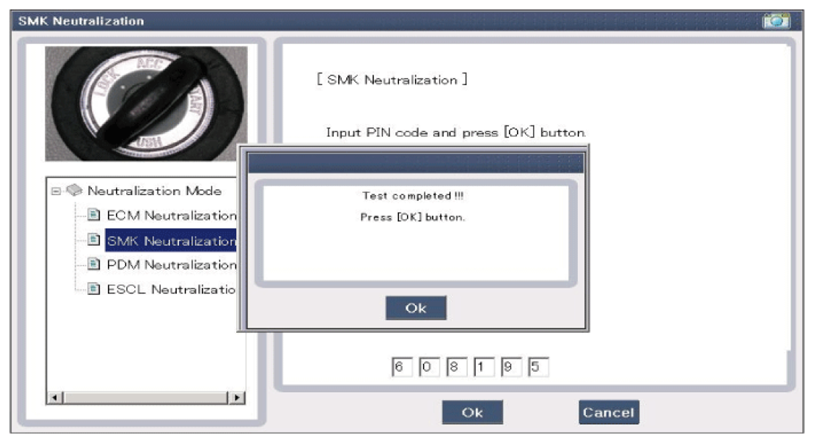

Fig 7: GDS Screen Display - SMK Neutralization Test Completed

Courtesy of HYUNDAI MOTOR CO.

Fig 8: GDS Screen Display - PDM Neutralization

Courtesy of HYUNDAI MOTOR CO.

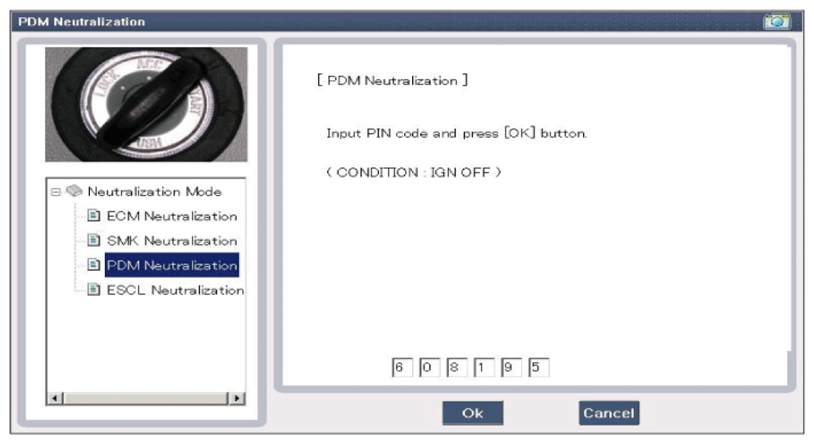

Fig 9: GDS Screen Display - PDM Neutralization In Process

Courtesy of HYUNDAI MOTOR CO.

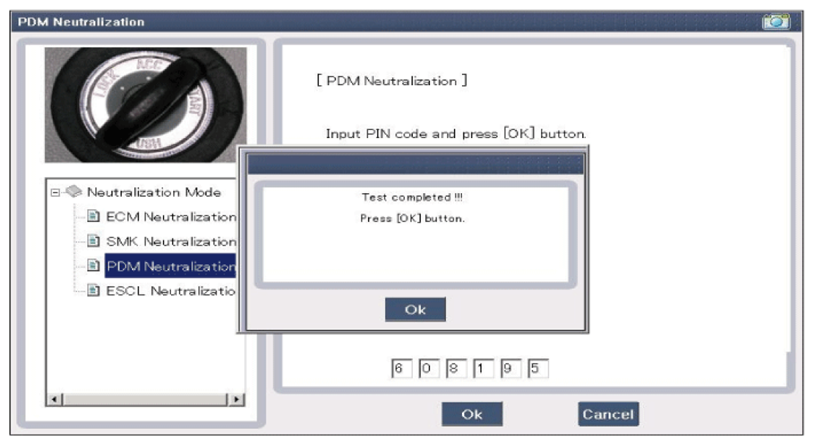

Fig 10: GDS Screen Display - PDM Neutralization Test Completed

Courtesy of HYUNDAI MOTOR CO.
