Hyundai
›
2013
›
Sonata GLS
›
Repair and Diagnosis
›
Electrical
›
Starter
›
Button Engine Start System (Except HEV)
›
PDM (Power Distribution Module)
›
Schematic Diagrams
›
System Circuit Diagram
System Circuit Diagram

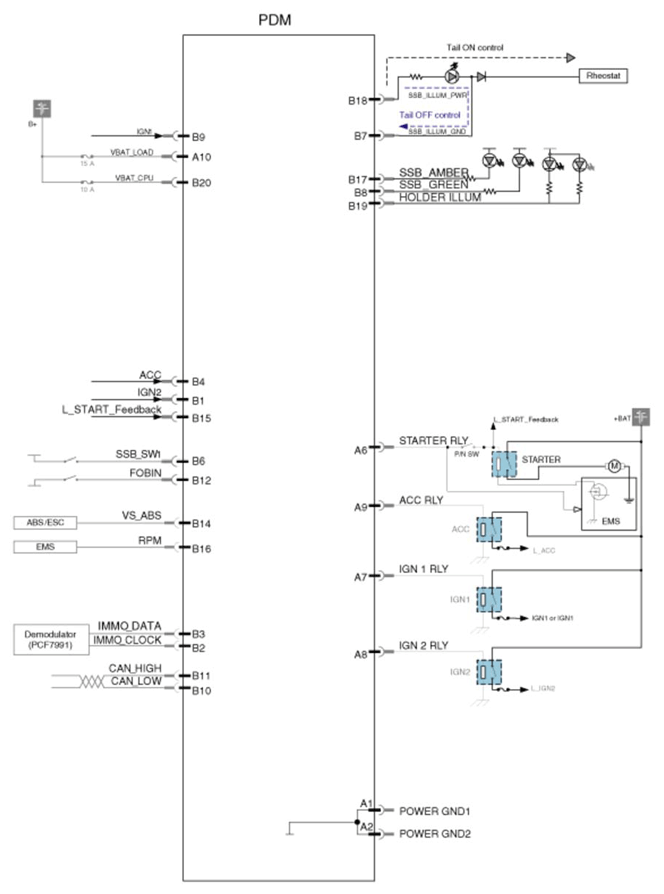

Fig 1: Power Distribution Module System Circuit Diagram
