Components And Components Location: Components

WARNING: This page is about a different variant/trim than selected.

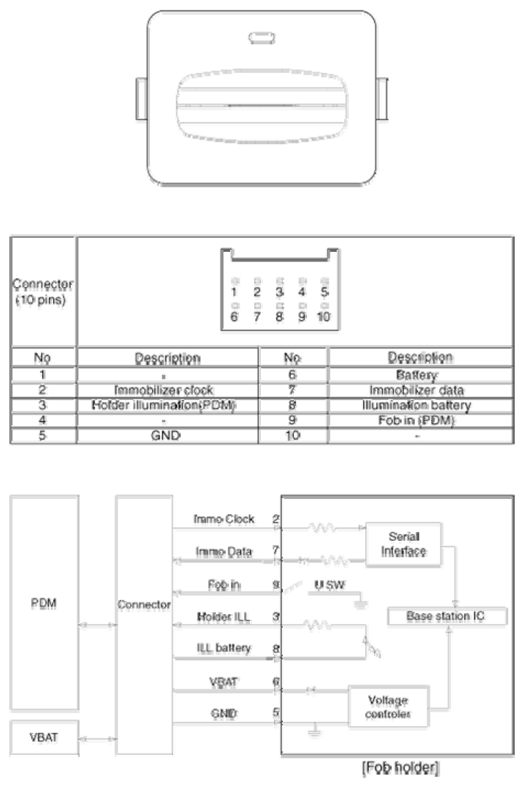

Fig 1: Fob Holder Circuit
G07319390Courtesy of HYUNDAI MOTOR CO.
