Section 41 (Button Engine Start System (HEV))
›
PDM (Power Distribution Module)
›
Schematic Diagrams
›
System Circuit Diagram
System Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

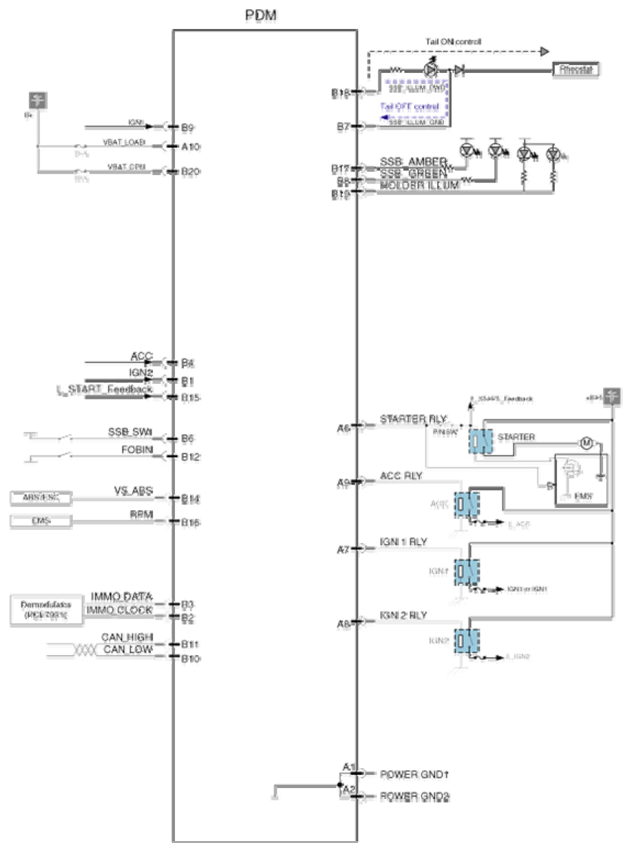

Fig 1: Power Distribution Module System Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
