Removal and Installation

  1. Disconnect the battery negative terminal (A).

    Tightening torque:

    (-) terminal: 4.0 ~ 6.0 N.m (0.4 ~ 0.6 kgf.m, 3.0 ~ 4.4 lb-ft)

  2. Remove the engine cover (B).
  3. Remove the air duct (C).
    Fig 1: Identifying Air Duct, Engine Cover And Battery Negative Terminal
    G06875002Courtesy of HYUNDAI MOTOR CO.
  4. Disconnect the breather hose (A), air intake hose (B) and then remove the air cleaner assembly (C).

    Tightening torque

    Hose clamp bolt:

    2.9 ~ 4.9 N.m (0.3 ~ 0.5 kgf.m, 2.2 ~ 3.6 lb-ft)

    Air cleaner assembly bolts:

    7.8 ~ 11.8 N.m (0.8 ~ 1.2 kgf.m, 5.8 ~ 8.7 lb-ft)

    Fig 2: Identifying Breather Hose, Air Intake Hose And Air Cleaner Assembly
    G06875003Courtesy of HYUNDAI MOTOR CO.

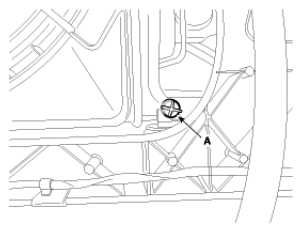

  5. Loosen the drain plug (A), and drain the coolant. Remove the radiator cap to speed draining.
    Fig 3: Identifying Drain Plug
    G06875004Courtesy of HYUNDAI MOTOR CO.
  6. Remove the radiator upper hose (A).
    Fig 4: Identifying Radiator Upper Hose
    G06875005Courtesy of HYUNDAI MOTOR CO.
  7. Disconnect the OCV connector (A).
    Fig 5: Identifying OCV Connector
    G06875006Courtesy of HYUNDAI MOTOR CO.
  8. Disconnect the VIS connector (A), the oil pressure switch (B), the knock sensor connector (C), the A/C compressor switch connector (D) and the alternator connector (E).
    Fig 6: Identifying VIS Connector, Oil Pressure Switch, Knock Sensor Connector, A/C Compressor Switch Connector And Alternator Connector
    G06875007Courtesy of HYUNDAI MOTOR CO.
  9. Disconnect the Injector connectors (A).
    Fig 7: Identifying Injector Connectors
    G06875008Courtesy of HYUNDAI MOTOR CO.

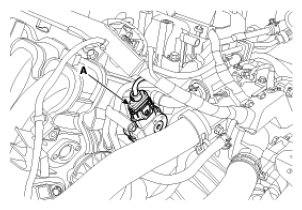

  10. Disconnect the VCM connector (A).
    Fig 8: Identifying VCM Connector
    G06875009Courtesy of HYUNDAI MOTOR CO.
  11. Disconnect the ETC connector (A) and the MAP & IATS connector (B).
    Fig 9: Identifying ETC Connector And MAP & IATS Connector
    G06875010Courtesy of HYUNDAI MOTOR CO.
  12. Disconnect the PCV hose (A).
    Fig 10: Identifying PCV Hose
    G06875011Courtesy of HYUNDAI MOTOR CO.

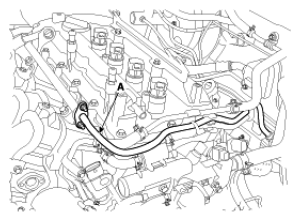

  13. Disconnect the fuel hose (A).
    Fig 11: Identifying Fuel Hose
    G06875012Courtesy of HYUNDAI MOTOR CO.

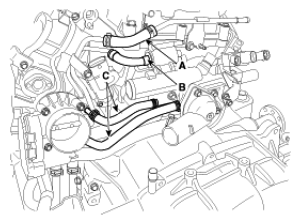

  14. Disconnect the brake booster vacuum hose (A), PCSV hose (B) and the throttle body coolant hoses (C).
    Fig 12: Identifying Brake Booster Vacuum Hose, PCSV Hose And Throttle Body Coolant Hoses
    G06875013Courtesy of HYUNDAI MOTOR CO.
  15. Remove the intake manifold stay (A) and then disconnect the sensor connectors from the mounting bracket.

    Tightening torque:

    18.6 ~ 23.5 N.m (1.9 ~ 2.4 kgf.m, 13.7 ~ 17.4 lb-ft)

    Fig 13: Identifying Intake Manifold Stay
    G06875014Courtesy of HYUNDAI MOTOR CO.
  16. Remove the intake manifold (A).

    Tightening torque:

    Bolts & Nuts: 18.6 ~ 23.5 N.m (1.9 ~ 2.4 kgf.m, 13.7 ~ 17.4 lb-ft)

    Fig 14: Identifying Intake Manifold
    G06875015Courtesy of HYUNDAI MOTOR CO.
  17. Installation is reverse order of removal.
