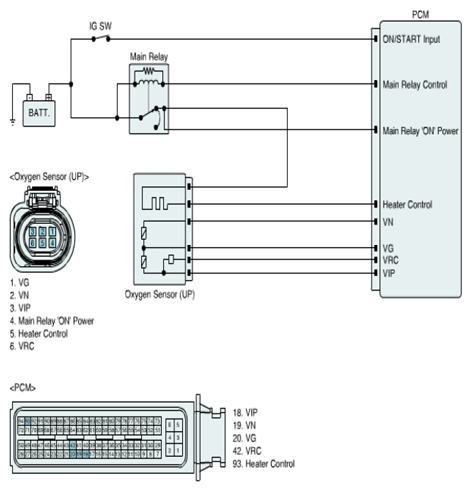

Home › Hyundai › 2013 › Tucson GL, Standard Trans › Repair and Diagnosis › Engine Performance › System › Engine Control System Diagnosis (3 Of 3) › DTC P2251: O2 Sensor Reference Ground Circuit/Open (Bank 1 Sensor 1) › General Information › Diagnostic Circuit Diagram
