Exterior Bumper Antenna

  1. Disconnect the negative (-) battery terminal.
  2. Remove the rear bumper.

    (Refer to "REAR BUMPER ")

  3. Disconnect the connector, then remove the rear bumper antenna (A) after loosening 2 screws.

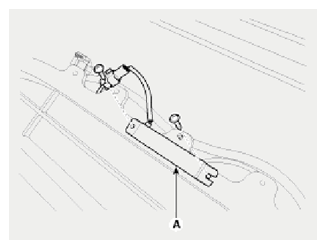

    Fig 1: Identifying Rear Bumper Antenna And Mounting Screws
    G09134493Courtesy of HYUNDAI MOTOR AMERICA
