Removal and Installation
- Remove the under cover.
- Remove the oil drain plug, and drain the oil into a container.

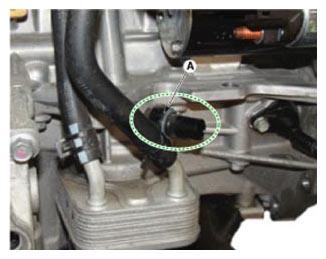

- Remove the oil pressure switch (A).
Tightening torque:
7.8 ~ 11.7 N.m (0.8 ~ 1.2 kgf.m, 5.7 ~ 8.6 lb-ft)
- Install in the reverse order of removal.
