Repair procedures: Replacement

WARNING: This page is about a different car, the 2012 Hyundai Veloster. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Remove the engine room under cover (A).

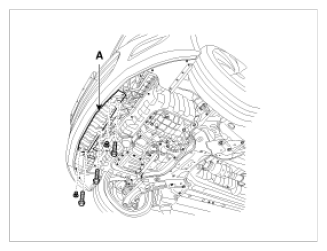

Fig 1: Identifying Engine Room Under Cover
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the connector and then remove the ambient temperature sensor (A).

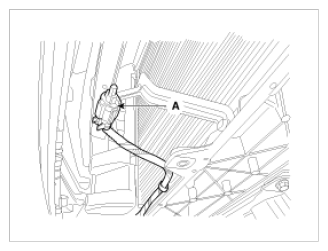

Fig 2: Identifying Ambient Temperature Sensor
Courtesy of HYUNDAI MOTOR AMERICA
Installation is the reverse order of removal.
