Repair Procedures: Removal

  1. Remove the ignition key from the vehicle.
  2. Disconnect the battery negative cable and wait for at least three minutes before beginning work.
  3. Remove the floor console.

    (Refer to "CONSOLE .

  4. Pull up the lock, of the SRSCM connector, the disconnect the connector (A and B).

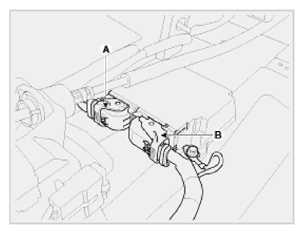

    Fig 1: Identifying SRSCM Connector
    G09133733Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the SRSCM mounting bolt and nuts from the SRSCM, then remove the SRSCM.
