Components and Components Location: Component: Notes

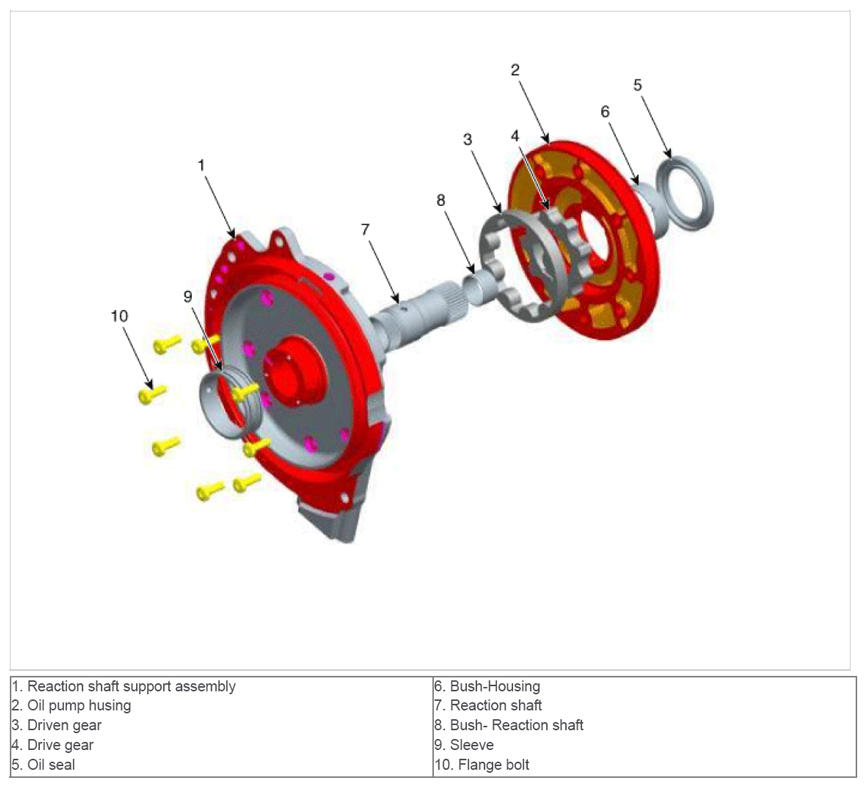

Fig 1: Oil Pump Components
G09150560Courtesy of HYUNDAI MOTOR AMERICA
