Repair Procedures: Removal

Remove the air duct.
(Refer to "AIR CLEANER ")
Remove the battery and the battery tray.
(Refer to "BATTERY ")
Remove the under cover.
Drain the coolant.
(Refer to "COOLANT ")
Remove the drain plug (A) and reinstall the drain plug after draining ATF totally.
Drain plug tightening torque:

38.2 ~ 48.1 N.m (3.9 ~ 4.9 kgf.m, 28.2 ~ 35.4 lb-ft)

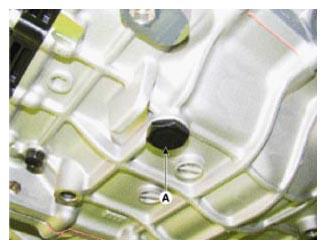

Fig 1: Identifying Drain Plug
Courtesy of HYUNDAI MOTOR AMERICA

CAUTION: The gasket of the drain plug use new one.
Remove the ATF Injection hole (eyebolt) (A).
Eyebolt tightening torque:

2.9 ~ 4.9 N.m (0.3 ~ 0.5 kgf.m, 2.2 ~ 3.6 lb-ft)

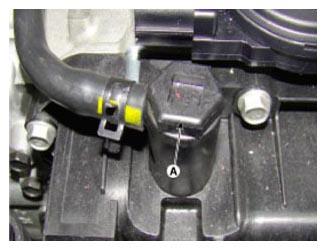

Fig 2: Identifying ATF Injection Hole (Eyebolt)
Courtesy of HYUNDAI MOTOR AMERICA

CAUTION: The O-Ring (A) of the eyebolt use new one.

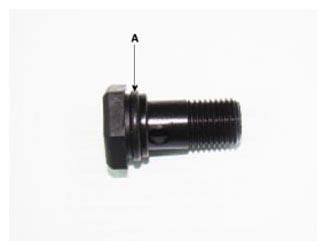

Fig 3: Identifying Eyebolt O-Ring
Courtesy of HYUNDAI MOTOR AMERICA
Remove the valve body cover (A).
Tightening torque:

(A) 13.7 ~ 15.7 N.m (1.4 ~ 1.6 kgf.m, 10.1 ~ 11.6 lb-ft)

Fig 4: Identifying Valve Body Cover
Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:
- Use new valve body gasket (A).
Fig 5: Identifying Valve Body Gasket
Courtesy of HYUNDAI MOTOR AMERICA
Remove the bolts (C) after disconnecting the solenoid valve connector (B) and the oil temperature sensor connector (A).
Tightening torque:

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

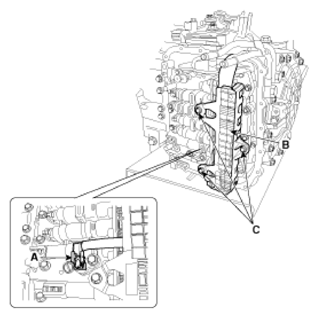

Fig 6: Identifying Solenoid Valve Connector, Oil Temperature Sensor Connector And Bolts
Courtesy of HYUNDAI MOTOR AMERICA
Remove the solenoid valve support bracket (A).
Tightening torque:

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

Fig 7: Identifying Solenoid Valve Support Bracket
Courtesy of HYUNDAI MOTOR AMERICA
Remove the solenoid valve (A).

Fig 8: Identifying Solenoid Valve
Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:
- When installing, apply the ATF oil or white Vaseline to the O-ring (A) not to be damaged.

  Fig 9: Identifying O-Rings
  Courtesy of HYUNDAI MOTOR AMERICA
