Circuit Diagram: (A/T)

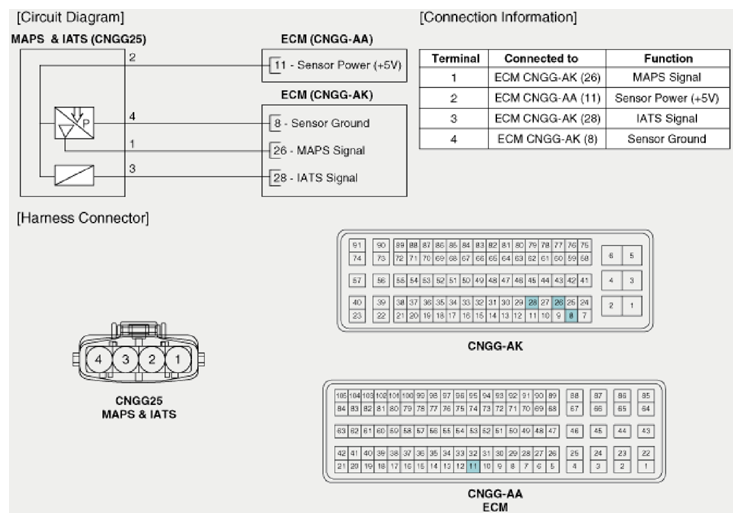

Fig 1: Manifold Absolute Pressure Sensor And Intake Air Temperature Sensor - Circuit Diagram (A/T)
G09151055Courtesy of HYUNDAI MOTOR AMERICA
