Cluster Replacement

NOTE:

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.

Using a screwdriver or remover, remove the cluster fascia panel (A).

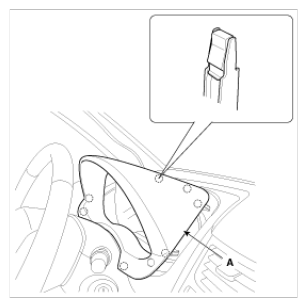

Fig 1: Removing Cluster Fascia Panel
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the connector (A).

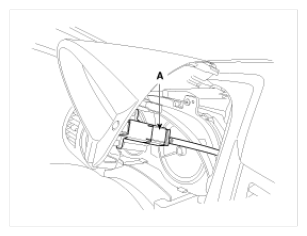

Fig 2: Identifying Connector
Courtesy of HYUNDAI MOTOR AMERICA
After loosening the mounting screws, then remove the cluster (A).

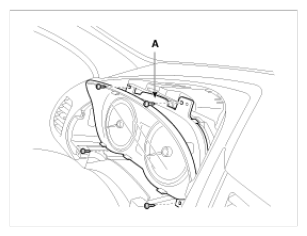

Fig 3: Identifying Cluster And Mounting Screws
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the connectors (A).

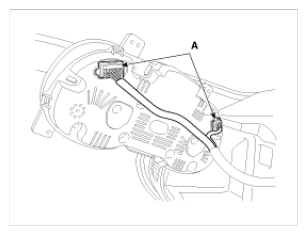

Fig 4: Identifying Connectors
Courtesy of HYUNDAI MOTOR AMERICA
Installation is the reverse of removal.
NOTE:
- Make sure the connector is plugged in properly.
- Replace any damage clips.
