Cowl Side Trim Replacement

NOTE:

Put on gloves to protect your hands.
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface
Take care not to bend or scratch the trim and panels.

Remove the front door scuff trim.
Using a screwdriver or remover, remove the cowl side trim (A).

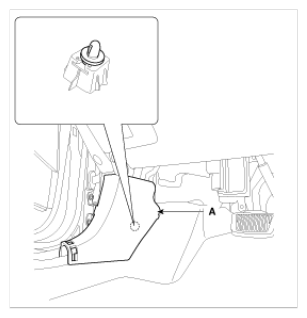

Fig 1: Identifying Cowl Side Trim
Courtesy of HYUNDAI MOTOR AMERICA
Installation is the reverse of removal.
NOTE:
- Replace any damaged clips.
