Repair Procedures: Replacement: Removal

NOTE:

Remove the following items.
1. Front pillar trim
  (Refer to "Front Pillar Trim Replacement .
2. Wiper arm
  (Refer to "COWL TOP COVER .
3. Cowl top cover
  (Refer to "COWL TOP COVER .
Using a screwdriver or remover, remove the windshield molding (A).
IMPORTANT: * Please use a cutter with a blade length between 8-12 inches.

Fig 1: Identifying Windshield Molding
Courtesy of HYUNDAI MOTOR AMERICA

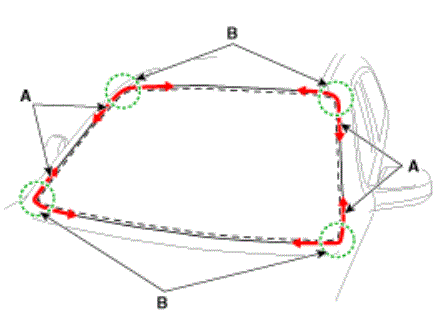

Cut off the sealant on the edge (B) while pulling the piano wire (A) left and right.
CAUTION:
1. Put on gloves to protect your hands.
2. Heat may occur when working on the wires. Be careful not to burn your hands.
3. Be careful not to disconnect the piano wire.
Fig 2: Cutting Out Sealant
Courtesy of HYUNDAI MOTOR AMERICA
If a piano wire is visible inside the chassis, pull the piano wire (A) line inside.

Fig 3: Removing Windshield Glass Sealant
Courtesy of HYUNDAI MOTOR AMERICA

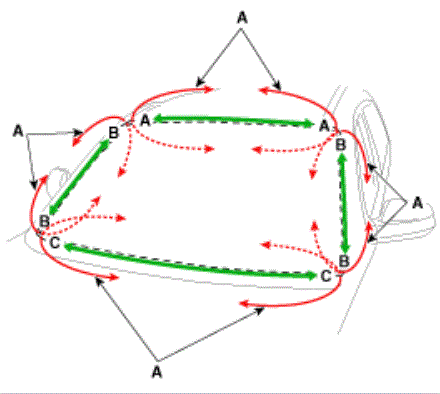

Cut off the sealant on (A-A), (B-B), (C-C), while pulling a piano wire (A) left and right.
CAUTION:
- Put on gloves to protect your hands.
- Heat may occur when working on the wires. Be careful not to burn your hands.
- Be careful not to disconnect the piano wire.
Fig 4: Cutting Of Sealant On (A-A), (B-B), (C-C), While Pulling A Piano Wire (A) Left And Right
Courtesy of HYUNDAI MOTOR AMERICA
Remove the windshield glass (B) carefully using the glass holder (A).

Fig 5: Removing Winshield Glass (B) Utilizing Glass Holders (A)

Courtesy of HYUNDAI MOTOR AMERICA
