Repair procedures: Disassembly

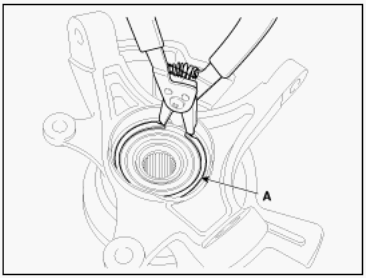

Remove the snap ring (A).

Fig 1: Removing Snap Ring
Courtesy of HYUNDAI MOTOR AMERICA
Remove the hub assembly from the knuckle assembly.
1. Install the front knuckle assembly (A) on press.
2. Lay a suitable adapter (B) upon the hub assembly shaft.
3. Remove the hub assembly (C) from the knuckle assembly (A) by using press.

  Fig 2: Identifying Hub Assembly, Knuckle Assembly And Adapter
  Courtesy of HYUNDAI MOTOR AMERICA
Remove the hub bearing inner race from the hub assembly.
1. Install a suitable tool (A) for removing the hub bearing inner race on the hub assembly.
2. Lay the hub assembly and tool (A) upon a suitable adapter (B).
3. Lay a suitable adapter (C) upon the hub assembly shaft.
4. Remove the hub bearing inner race (D) from the hub assembly by using press.

  Fig 3: Removing Hub Bearing Inner Race
  Courtesy of HYUNDAI MOTOR AMERICA
Remove the dust cover (A).

Fig 4: Identifying Dust Cover
Courtesy of HYUNDAI MOTOR AMERICA
Remove the hub bearing outer race from the knuckle assembly.
1. Lay the hub assembly (A) upon a suitable adapter (B).
2. Lay a suitable adapter (C) upon the hub bearing outer race.
3. Remove the hub bearing outer race from the knuckle assembly by using press.

  Fig 5: Removing Hub Bearing Outer Race From Knuckle Assembly
  Courtesy of HYUNDAI MOTOR AMERICA
Replace hub bearing with a new one.
