Repair procedures: Reassembly

Install the hub bearing to the knuckle assembly.
1. Lay the knuckle assembly (A) on press.
2. Lay a new hub bearing upon the knuckle assembly (A).
3. Lay a suitable adapter (B) upon the hub bearing.
4. Install the hub bearing to the knuckle assembly by using press.

  Fig 1: Installing Hub Bearing To Knuckle Assembly
  Courtesy of HYUNDAI MOTOR AMERICA
  CAUTION:
  - Do not press against the inner race of the hub bearing because that can cause damage to the bearing assembly.
  - Always use a new wheel bearing assembly.
Install the dust cover (A).

Fig 2: Locating Dust Cover Mounting Bolts
Courtesy of HYUNDAI MOTOR AMERICA
Install the hub assembly to the knuckle assembly.
1. Lay the hub assembly (A) upon a suitable adapter (B).
2. Lay the knuckle assembly (C) upon the hub assembly (A).
3. Lay a suitable adapter (D) upon the hub bearing.
4. Install the hub assembly (A) to the knuckle assembly (C) by using press.

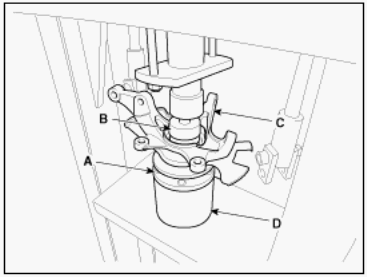

  Fig 3: Installing Hub Assembly To Knuckle Assembly Using Press
  Courtesy of HYUNDAI MOTOR AMERICA

  CAUTION: Do not press against the inner race of the hub bearing because that can cause damage to the bearing assembly.
Install the snap ring (A).

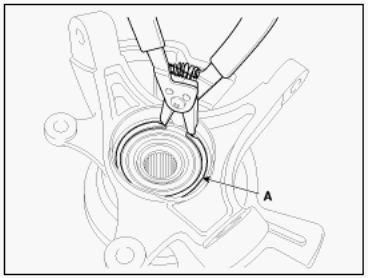

Fig 4: Installing Snap Ring Using Special Tool
Courtesy of HYUNDAI MOTOR AMERICA
