Repair procedures: Disassembly

Disconnect the M-terminal (A) on the magnet switch assembly.

Fig 1: Identifying Magnet Switch Assembly M-Terminal
Courtesy of HYUNDAI MOTOR AMERICA
After loosening the 2 screws (A), detach the magnet switch assembly (B).

Fig 2: Identifying Magnet Switch Assembly And Screws
Courtesy of HYUNDAI MOTOR AMERICA
Loosen the through bolts (A).

Fig 3: Identifying Through Bolts
Courtesy of HYUNDAI MOTOR AMERICA
Remove the rear bracket (A) and brush holder assembly (B).

Fig 4: Identifying Brush Holder Assembly And Rear Bracket
Courtesy of HYUNDAI MOTOR AMERICA
Remove the yoke (A).

Fig 5: Identifying Yoke
Courtesy of HYUNDAI MOTOR AMERICA

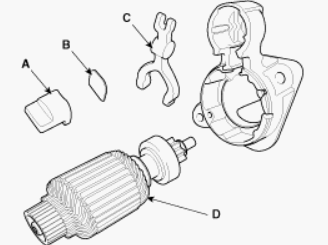

Remove the packing (A), lever plate (B), lever (C) and the armature (D).

Fig 6: Identifying Lever Plate, Packing, Lever And Armature
Courtesy of HYUNDAI MOTOR AMERICA

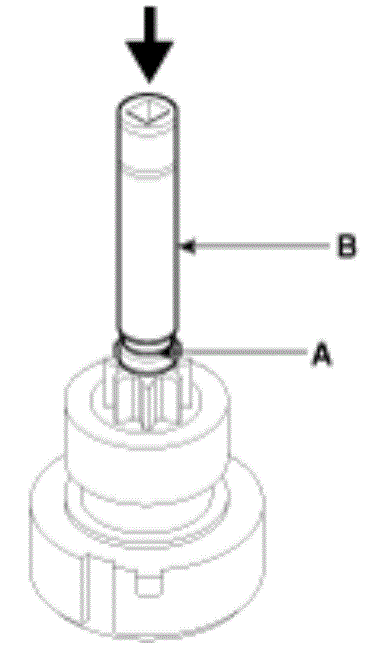

Press the stopper (A) using a socket (B).

Fig 7: Pressing Stopper
Courtesy of HYUNDAI MOTOR AMERICA
Remove the stop ring (A) using stopper pliers (B).

Fig 8: Removing Stop Ring
Courtesy of HYUNDAI MOTOR AMERICA
Remove the stop ring (B), stopper (A), overrunning clutch (C) and armature (D).

Fig 9: Identifying Stop Ring, Stopper, Overrunning Clutch And Armature
Courtesy of HYUNDAI MOTOR AMERICA

NOTE: Using a suitable pulling tool (A), pull the overrunning clutch stopper (C) over the stop ring (B).

Fig 10: Pulling Overrunning Clutch Stopper Over Stop Ring Using Pulling Tool
Courtesy of HYUNDAI MOTOR AMERICA
Reassembly is the reverse of disassembly.
