Components and Components Location: Components

WARNING: This page is about a different car, the 2014 Hyundai Santa Fe Sport and 2013 Hyundai Santa Fe Sport. However, it is still accessible from the selected car via links, so may be relevant.

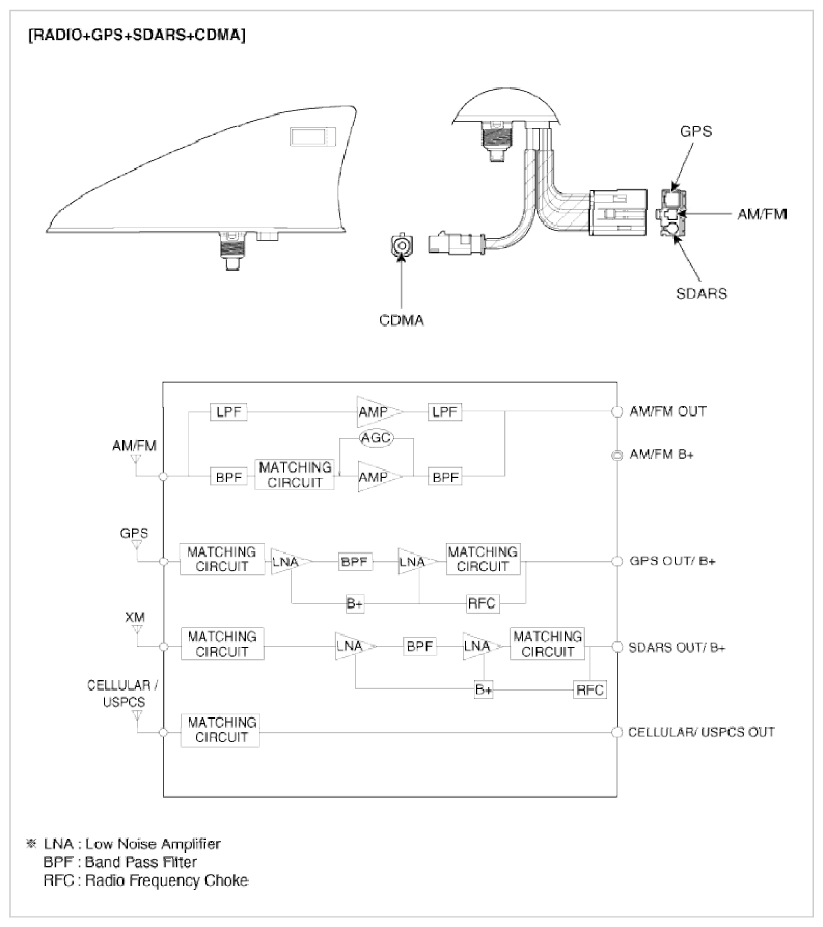

Fig 1: Antenna - Circuit Diagram (RADIO/GPS/SDARS/CDMA)

Courtesy of HYUNDAI MOTOR AMERICA

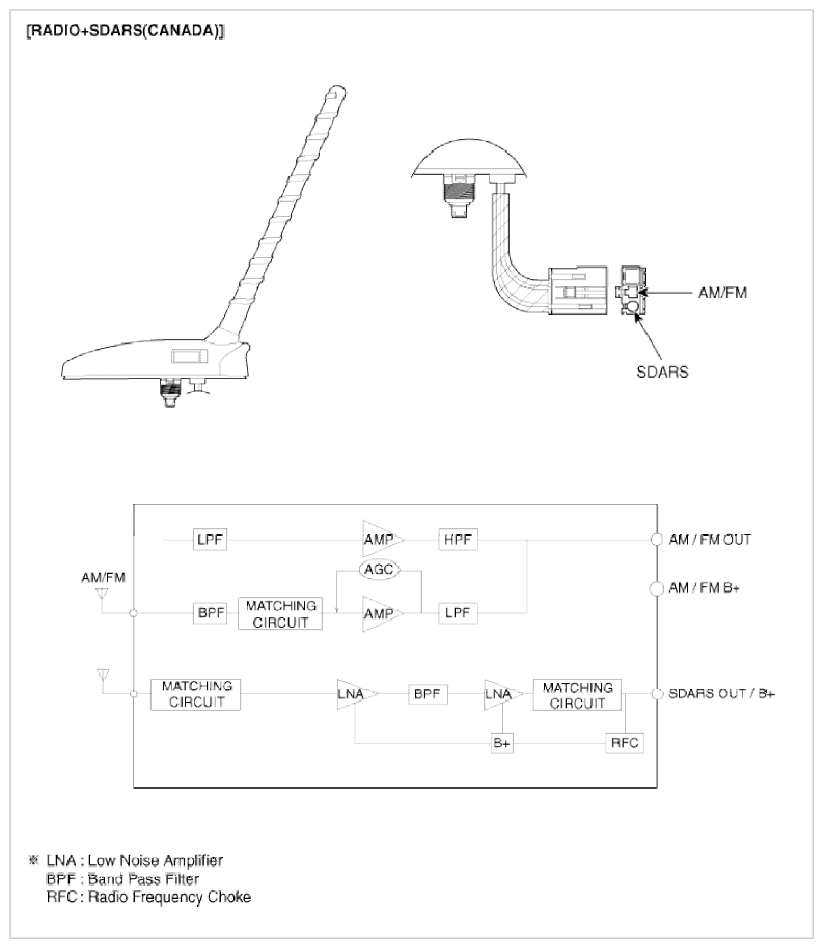

Fig 2: Antenna - Circuit Diagram (RADIO/SDARS)

Courtesy of HYUNDAI MOTOR AMERICA
