Smart Key Status Check

WARNING: This page is about a different car, the 2014 Hyundai Santa Fe Sport and 2013 Hyundai Santa Fe Sport. However, it is still accessible from the selected car via links, so may be relevant.

Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
After IG ON, select the "SMK STATUS INFO".

Fig 1: Display - SMK Status Information Screen (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

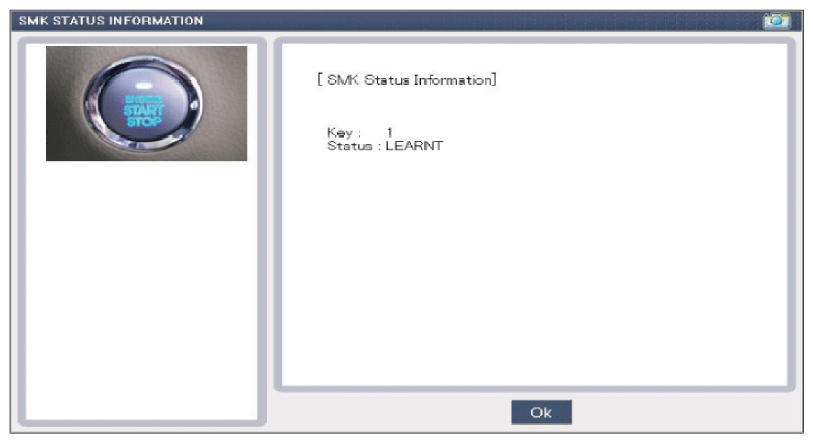

Fig 2: Display - SMK Status Information Screen (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
