Repair procedures: Removal: Buzzer

WARNING: This page is about a different car, the 2014 Hyundai Santa Fe Sport and 2013 Hyundai Santa Fe Sport. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the front left wheel guide.
  3. Disconnect the connectors, then remove the buzzer (A).

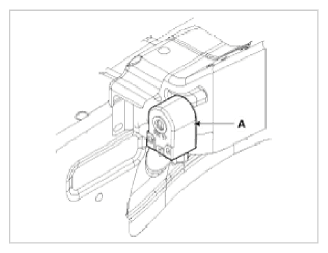

    Fig 1: Identifying Buzzer
    G09366103Courtesy of HYUNDAI MOTOR AMERICA
