Liftgate Open Switch
WARNING: This page is about a different car, the 2014 Hyundai Santa Fe Sport and 2013 Hyundai Santa Fe Sport. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative (-) battery terminal.
- Remove the Liftgate trim.
Refer to TAIL GATE TRIM .
- Remove the Liftgate back panel.
Refer to TAIL GATE BACK PANEL .

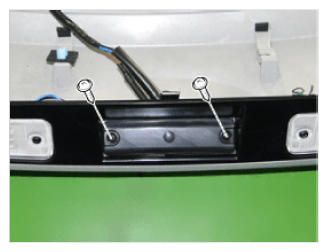

- Loosen the Liftgate switch mounting screws (2EA).

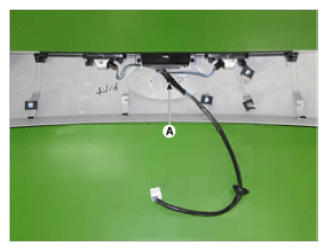

- Remove the Liftgate switch (A) after separating the license lamp wiring.
