Component Location

WARNING: This page is about a different car, the 2014 Hyundai Santa Fe Sport and 2013 Hyundai Santa Fe Sport. However, it is still accessible from the selected car via links, so may be relevant.

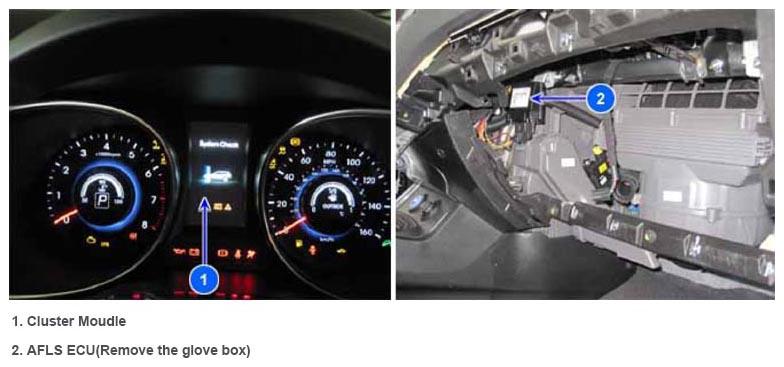

Fig 1: Identifying Cluster Module And AFLS ECU (Remove Glove Box)

Courtesy of HYUNDAI MOTOR AMERICA
