Accent GLS, Standard Trans
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System
›
Camshaft Position Sensor (CMPS)
›
Troubleshooting
›
Wave Form
Wave Form

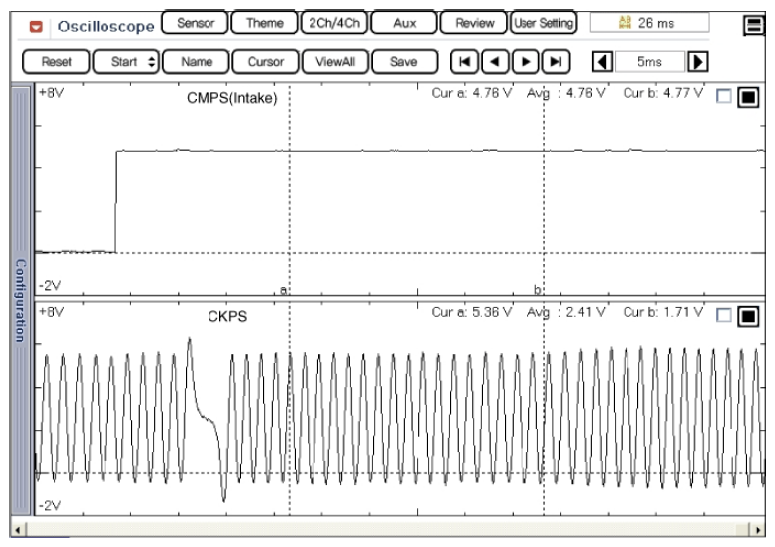

Fig 1: Camshaft Position Sensor Signal Waveform (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

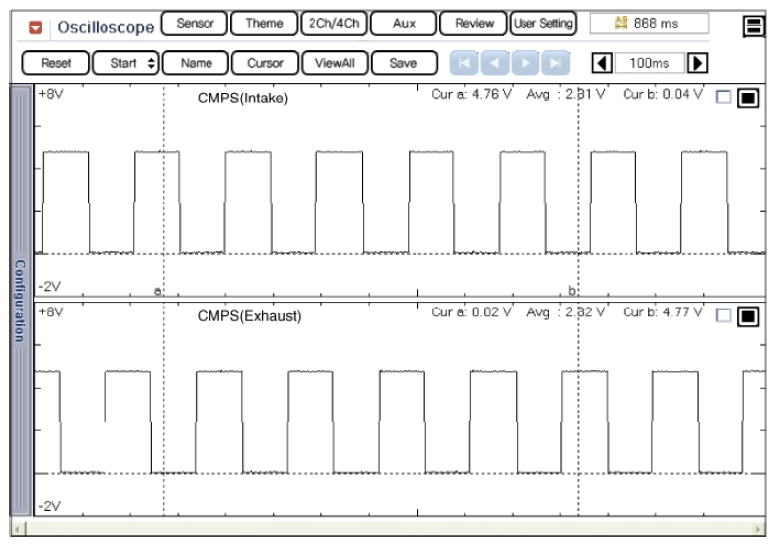

Fig 2: Camshaft Position Sensor Signal Waveform (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
