Engine Control System
›
Components and Components Location
›
Components Location
Components Location

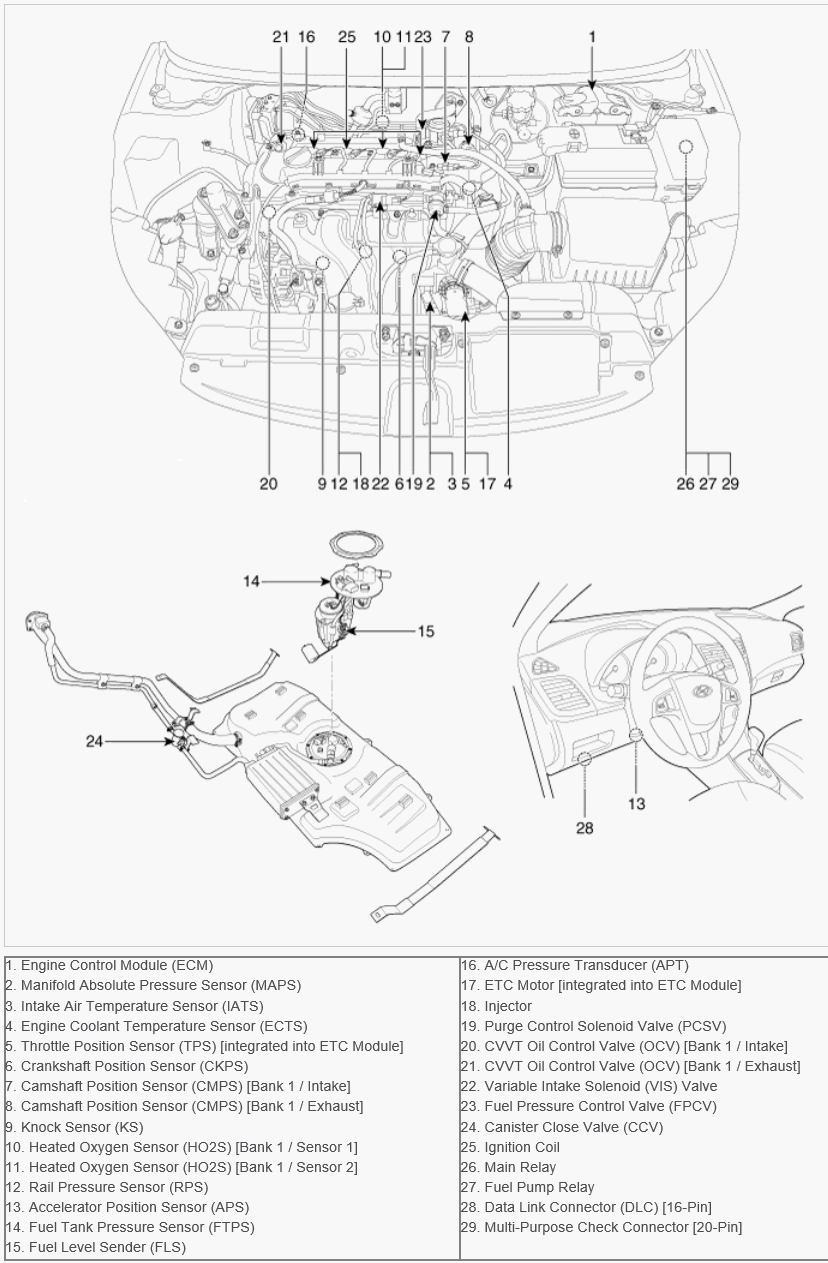

Fig 1: Locating Engine Control & Fuel System Components Location (1 Of 5)
Courtesy of HYUNDAI MOTOR AMERICA

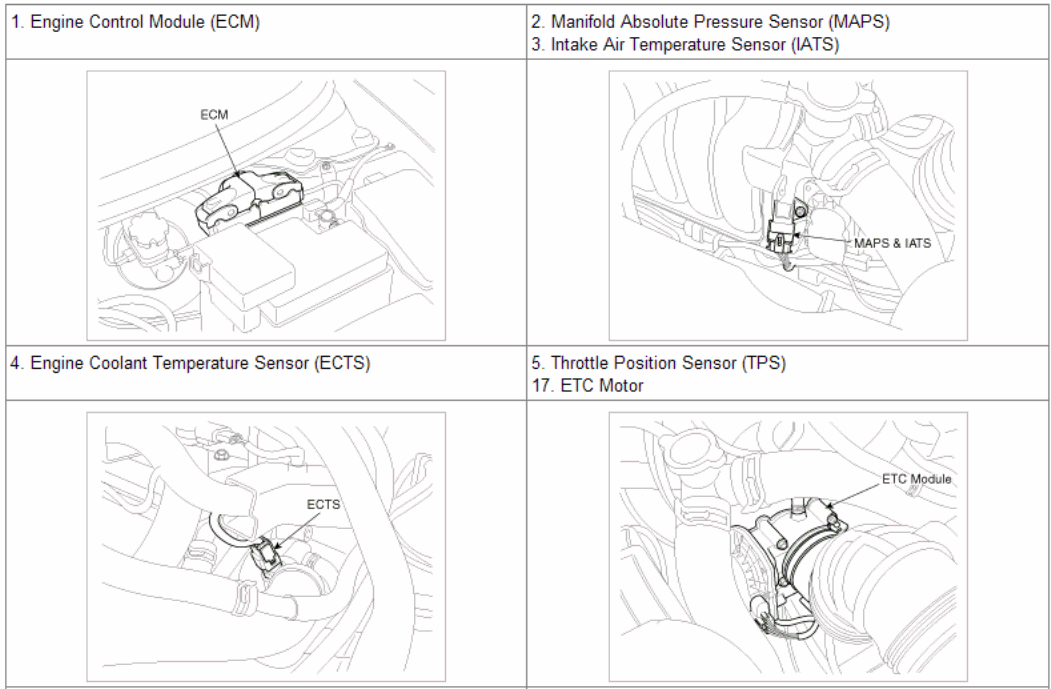

Fig 2: Locating Engine Control & Fuel System Components Location (2 Of 5)
Courtesy of HYUNDAI MOTOR AMERICA

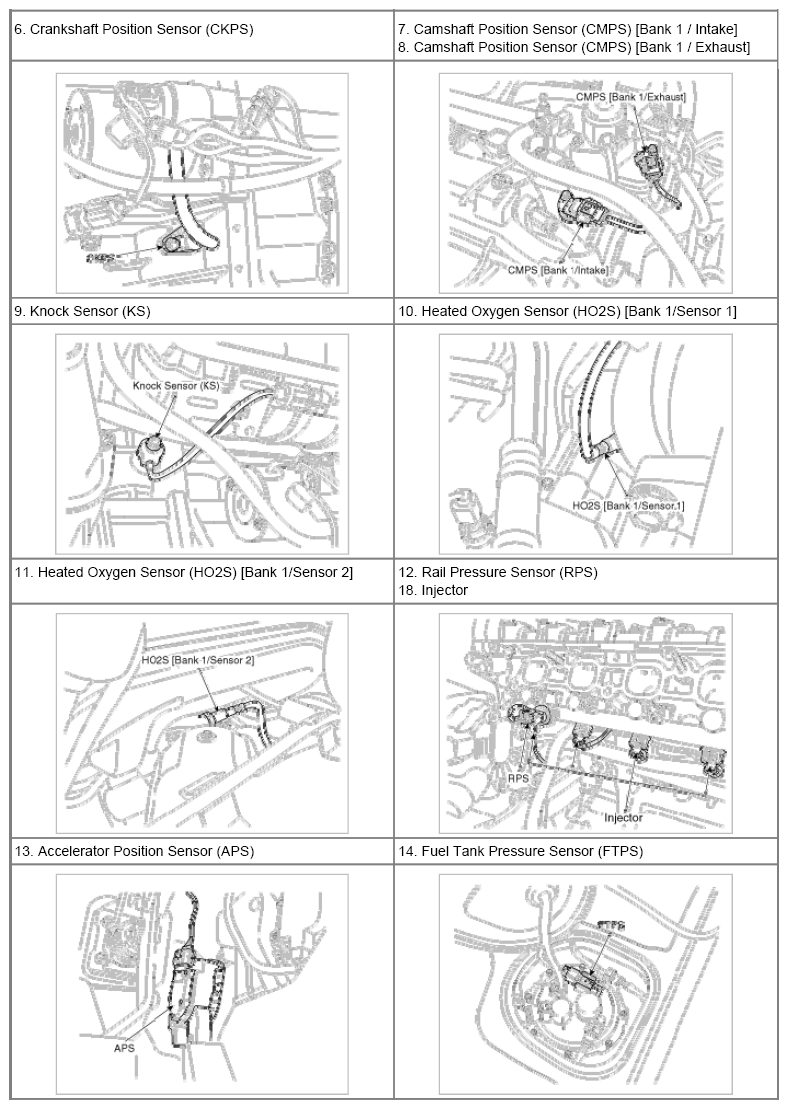

Fig 3: Locating Engine Control & Fuel System Components Location (3 Of 5)
Courtesy of HYUNDAI MOTOR AMERICA

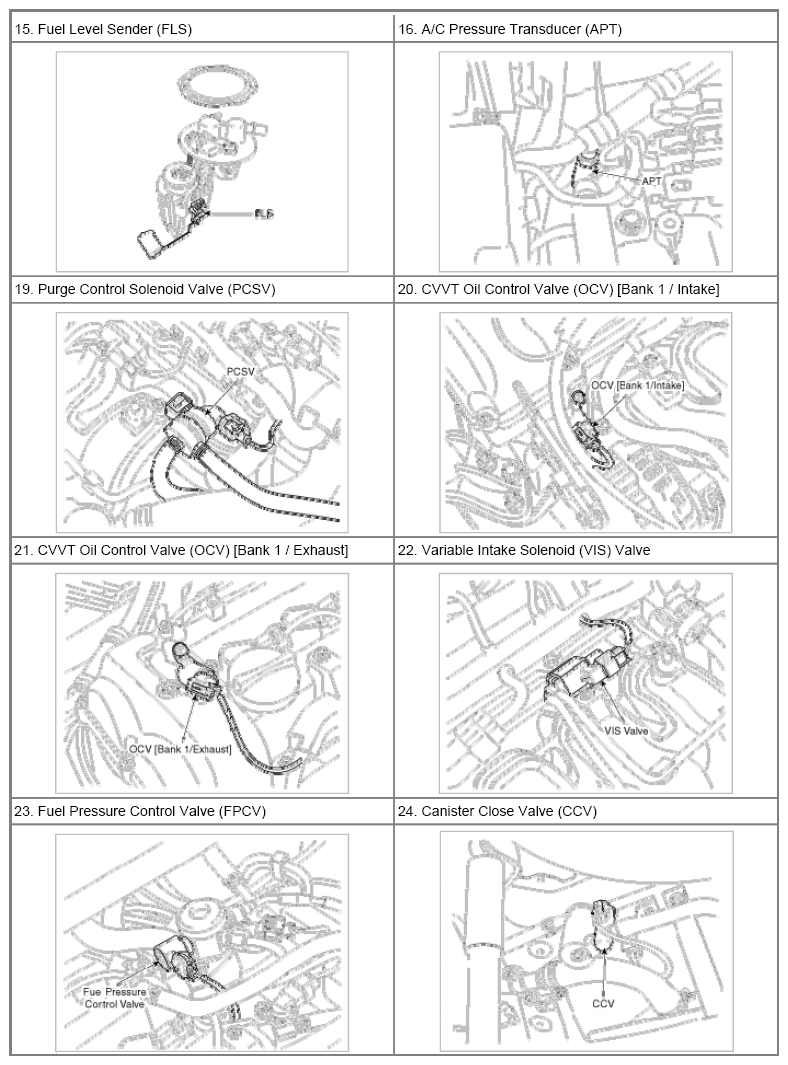

Fig 4: Locating Engine Control & Fuel System Components Location (4 Of 5)
Courtesy of HYUNDAI MOTOR AMERICA

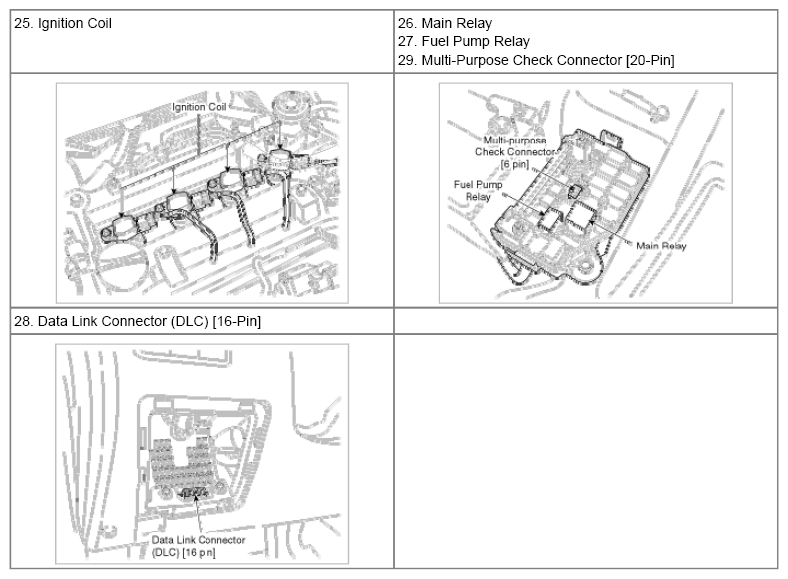

Fig 5: Locating Engine Control & Fuel System Components Location (5 Of 5)
Courtesy of HYUNDAI MOTOR AMERICA
