Repair procedures: Installation

NOTE: When replacing the a clutch housing, the wiring bracket should be installed in accordance with the clutch housing type.

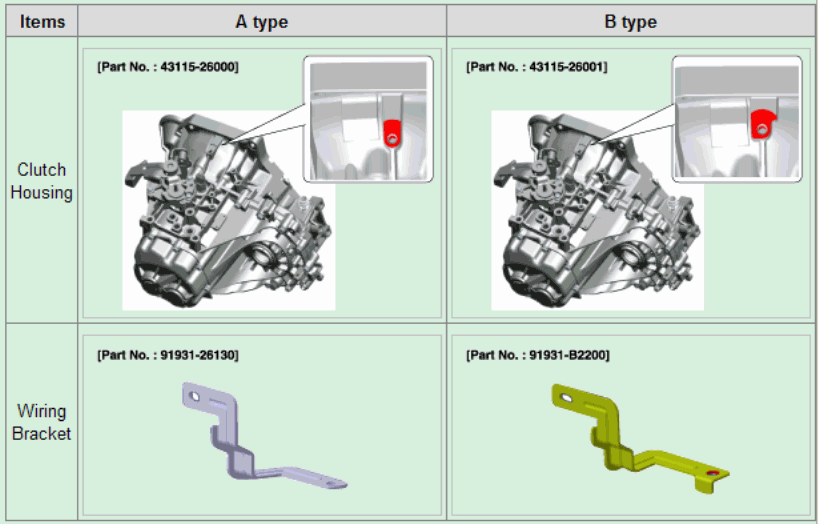

Fig 1: Identifying Clutch Housing And Wiring Bracket Types

Courtesy of HYUNDAI MOTOR AMERICA

1. Installation is the reverse of removal.
   CAUTION:

   • Adding Manual transaxle fluid.

     (Refer to "Manual Transaxle Oil Replacement ")
