Repair procedures: Replacement

WARNING: This page is about a different car, the 2014 Hyundai Santa Fe Sport and 2013 Hyundai Santa Fe Sport. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the front bumper.

    Refer to FRONT BUMPER COVER .

  3. Disconnect the connector (A) and then remove the ambient temperature sensor (B).

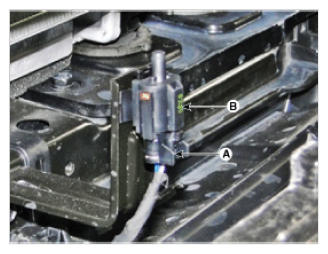

    Fig 1: Identifying Ambient Temperature Sensor And Connector
    G09366706Courtesy of HYUNDAI MOTOR AMERICA
  4. Install in the reverse order of removal.
