Repair Procedures: Disassembly

Disconnect the M-terminal (A) on the starter solenoid assembly (B).

Fig 1: Identifying M-Terminal And Starter Solenoid Assembly
Courtesy of HYUNDAI MOTOR AMERICA
After loosening the 3 screws (A), detach the starter solenoid assembly (B).

Fig 2: Identifying Starter Solenoid Assembly And Screws
Courtesy of HYUNDAI MOTOR AMERICA

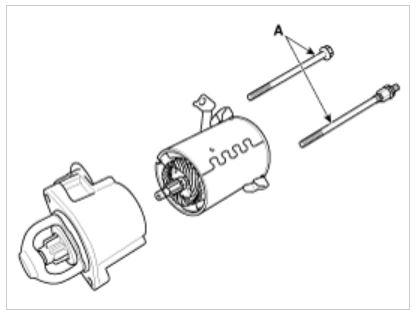

Loosen the through bolts (A).

Fig 3: Identifying Through Bolts
Courtesy of HYUNDAI MOTOR AMERICA
Remove the brush holder assembly (C), the yoke (B), the armature (C) and the rear housing (D).

Fig 4: Identifying Brush Holder Assembly, Yoke, Armature And Rear Housing
Courtesy of HYUNDAI MOTOR AMERICA
Remove the lever packing (A) and the lever plate (B).

Fig 5: Identifying Lever Packing And Lever Plate
Courtesy of HYUNDAI MOTOR AMERICA
Remove the shield (A) and the packing (B).

Fig 6: Identifying Shield And Packing
Courtesy of HYUNDAI MOTOR AMERICA
Remove the planet gear (A).

Fig 7: Identifying Planet Gear
Courtesy of HYUNDAI MOTOR AMERICA
Remove the planet shaft assembly (A) and the lever (B).

Fig 8: Identifying Planet Shaft Assembly And Lever
Courtesy of HYUNDAI MOTOR AMERICA
Press the stopper (A) using a socket (B).

Fig 9: Pressing Stopper Using Socket
Courtesy of HYUNDAI MOTOR AMERICA
Remove the stop ring (A) using the stop ring pliers (B).

Fig 10: Removing Stop Ring Using Stop Ring Pliers
Courtesy of HYUNDAI MOTOR AMERICA
Remove the stopper (A), overrunning clutch (B), internal gear (C) and planet shaft (D).

Fig 11: Identifying Stopper, Overrunning Clutch, Internal Gear And Planet Shaft
Courtesy of HYUNDAI MOTOR AMERICA

NOTE: Using a suitable pulling tool (A), pull the overrunning clutch stop ring (B) over the stopper (C).

Fig 12: Pulling Overrunning Clutch Stop Ring Over Stopper
Courtesy of HYUNDAI MOTOR AMERICA
Reassembly is the reverse of disassembly.
