ESCL Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "ESCL STATUS INFO".

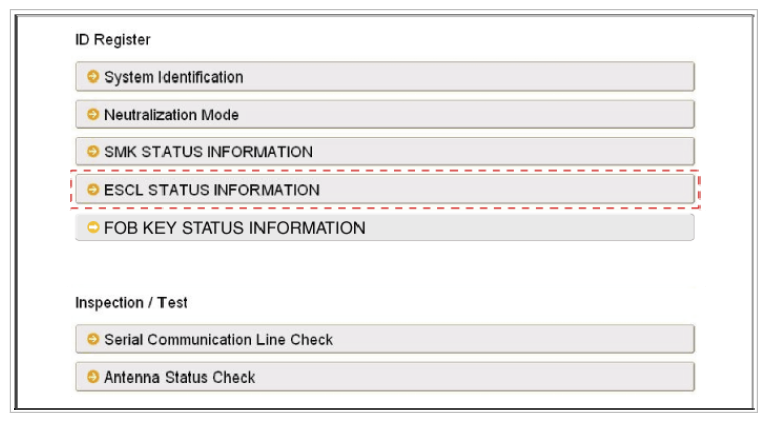

    Fig 1: Display - ESCL Status Information
    G08814155Courtesy of HYUNDAI MOTOR AMERICA

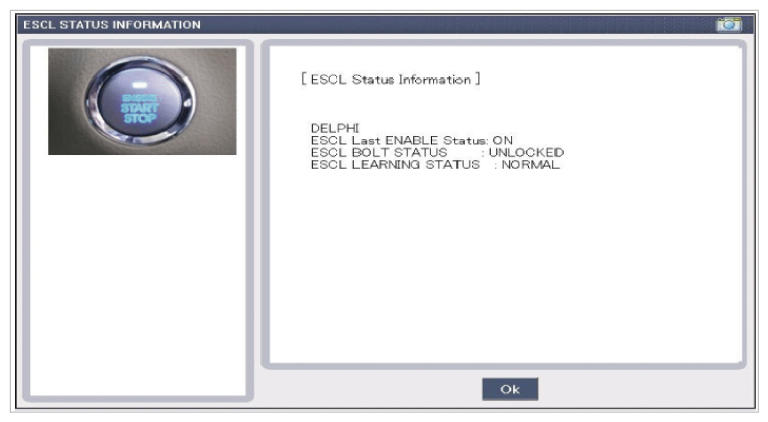

    Fig 2: Display - ESCL Status Information Screen
    G08814156Courtesy of HYUNDAI MOTOR AMERICA
